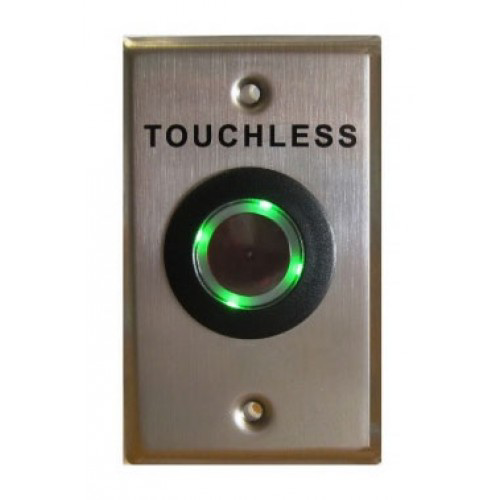

Touchless Exit Button Dual Light IP67 Dual-Colour LED Ness
Ness touchless exit button features IP67 waterproofing, a dual-colour LED and a compact design. Ideal for access control installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Touchless Exit Button, Contactless Request-to-Exit Button, Touchless REX Button, Dual-Colour LED Exit Button
Technical Specifications
- Product Code: 101-113
- Related Model: WEL3761
- Ingress Protection: IP67
- LED Supply Voltage: 12 V DC
- Relay Outputs: Two isolated NO/NC outputs
- Door Release Timing: Momentary or 10 seconds
- Standby LED Colour: Selectable red or green
- Construction: Stainless steel plate with flying leads
- Activation: Hand wave or approach
- Mounting: Compact format for standard mounting blocks
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Touchless operation reduces the need for physical contact
- IP67-rated waterproof construction for suitable indoor and outdoor access-control locations
- Dual-colour LED provides visual action confirmation
- Selectable red or green standby indication
- Two isolated relay outputs with normally open and normally closed contacts
- Selectable momentary or 10-second door-release timing
- Durable stainless steel faceplate
- Flying leads simplify wiring and reduce reliance on exposed terminal hardware
Professional Installation Requirements
- Installation should be performed by a suitably qualified access-control technician or electrician. Connect the low-voltage device to the access-control system in accordance with the manufacturer’s wiring instructions and applicable electrical requirements.
Applications
- Commercial office access-control doors
- Retail and public buildings
- Industrial and warehouse entry points
- Outdoor or washdown-prone access-control locations
- Hygiene-sensitive facilities requiring contactless exit operation
Standards & Compliance
- AS/NZS IEC 60839.11.1:2019 is the applicable Australian/New Zealand standard for electronic access-control systems and components; product-specific certification was not published.
Environmental Benefits
- Stainless steel construction supports a long service life and material recyclability
- Durable IP67 construction can reduce replacement frequency and associated product waste
- Touchless operation can reduce reliance on cleaning consumables at frequently used exit points
Warranty Information
Ness manufactured or supplied products are covered by Ness Corporation’s general 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness terms and conditions.
Available Now
Available through Ness Corporation and authorised Australian security and electrical distributors.
