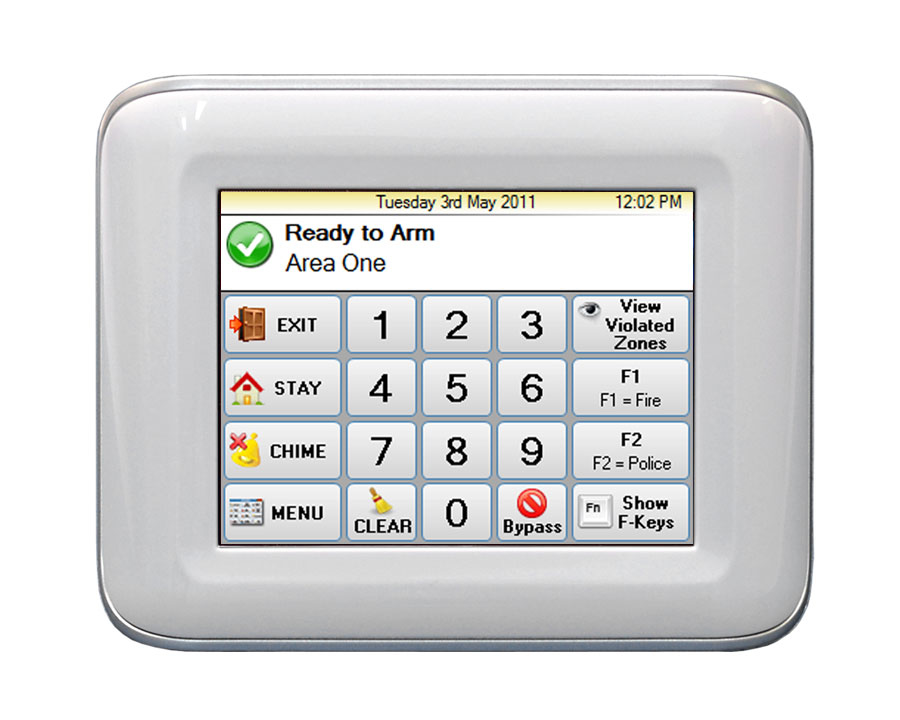

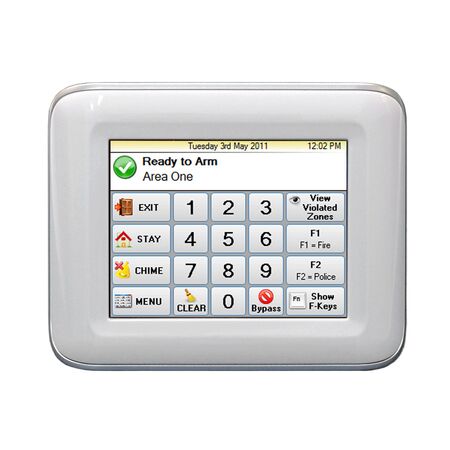

Touchscreen Keypad 3.5 Inch LCD M1 RS485 Bus Ness

BRAND: Ness
SKU: 101-502
$275.70 List price: $367.60
+ −
30 Days Return Electricians Unlock Trade Access
Ness touchscreen keypad features a 3.5 Inch LCD, easy graphic icons and an M1 RS485 bus connection. Ideal for M1 alarm system control.

Alternatively Known As: Ness M1 Navigator Touch Screen Keypad, Ness 101-502 Keypad

Technical Specifications
  • Display: 3.5-inch colour LCD
  • Display Resolution: 320 x 240 pixels
  • User Interface: Touch-sensitive surface
  • Compatibility: Ness M1, M1 Gold, M1EZ8 and EZ8/EZ24 control systems
  • Data Connection: Two-wire proprietary Ness M1 RS485 data bus
  • Operating Voltage: 12 VDC supplied by the controller
  • Onboard I/O: One supervised zone input and one switched-positive voltage output
  • Function Keys: Six customisable or programmable function keys
  • Manufacture: Made in Australia
  • Dimensions (H x L x W): 86mm x 15mm x 108mm
  • Weight: 0.5 kg
Key Features
  • Touch-sensitive 3.5-inch full-colour LCD display
  • Easy-to-use graphic icons and softkeys
  • Six programmable function keys
  • Displays and controls multiple alarm areas
  • Supports security zones, outputs, lighting and automation tasks
  • Compatible with new and retrofit M1 system installations
  • White fascia supplied, with black and silver fascia accessories available
  • Built-in piezo sounder with adjustable pitch
Professional Installation Requirements
  • Installation and programming should be performed by a suitably qualified security technician. The keypad connects to the M1 alarm controller via the RS485 data bus and should be installed as part of an intruder alarm system in accordance with applicable local requirements and AS/NZS 2201.1:2007.
Applications
  • Residential M1 alarm system control
  • Commercial security alarm installations
  • M1 and EZ8/EZ24 system retrofit projects
  • Control of security zones, outputs, lighting and automation tasks
Standards & Compliance
  • AS/NZS 2201.1:2007 — relevant to the design, installation, commissioning and maintenance of the associated intruder alarm system; product-specific certification is not stated.
Environmental Benefits
  • Operates from the alarm controller's 12 VDC supply, avoiding a separate mains supply at the keypad
  • Long-term compatibility with Ness M1 systems can help extend existing alarm system service life and reduce unnecessary equipment replacement
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase under Ness's current product warranty policy. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))

Available Now

Available through Ness and authorised Australian security-equipment distributors; confirm current stock and model compatibility before ordering.
