Tough Panelboard 72 Way | 250A Main Switch | IP66 Stainless Steel by NHP

BRAND: NHP
SKU: CTD72M250SSO
$26,785.10 List price: $35,567.10
Free pick up (over 25 kg)
For delivery quote message
Tough panelboard with 72 outgoing ways and 250A main switch—ideal for industrial and commercial electrical distribution. Built for durability, with IP66 stainless steel construction for protection against dust and water ingress.

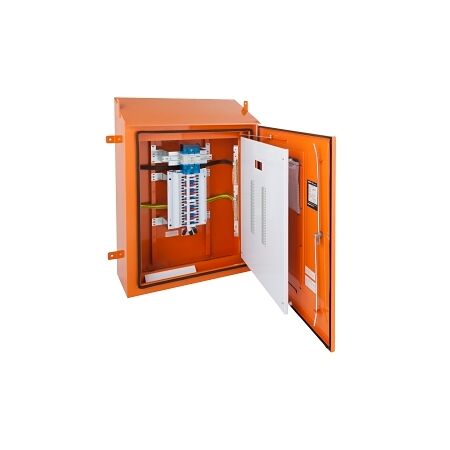

Product Name/Title: NHP Concept Tough Panelboard Size 3 1500mm IP66 DINT 72 Way 250A Main Switch Stainless Steel Orange

Brand: NHP

SKU: CTD72M250SSO

Alternatively Known As: Tough Panelboard, Stainless Steel Panelboard, Industrial Distribution Board

Technical Specifications
  • Rated Current: 250 A
  • Number of Outgoing Ways: 72
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Rated Insulation Voltage: 500 V
  • Number of Poles Main Switch: 3
  • Neutral Terminal Block: Yes
  • Neutral Bar Rated Current: 165 A
  • Earthing Terminal Block: Yes
  • Spare DIN Equipment Space Poles: 18
  • Material Housing: Stainless Steel
  • Material Thickness: 2 mm
  • Degree of Protection: IP66
  • Impact Strength: IK10
  • Mounting Method: Surface Mounted
  • Dimensions (H x L x W): 1500mm x 324mm x 800mm
  • Weight: 50 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Stainless steel construction for durability and corrosion resistance.
  • 72 outgoing ways for extensive electrical distribution.
Professional Installation Requirements
  • Professional installation by a qualified electrician is required for safety and compliance.
Applications
  • Industrial: Factories, manufacturing plants
  • Commercial: Retail spaces, office buildings
  • General: Any location requiring robust electrical distribution
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Tough Panelboard Size 3 1500mm IP66 DINT 72 Way 250A Main Switch is available now for immediate purchase. Ideal for industrial and commercial electrical distribution.

Non-Returnable & Non-Cancellable

CTD72M250SSO-AU-Concept-Tough-Panelboard-Datasheet.pdf (CTD72M250SSO-AU-Concept-Tough-Panelboard-Datasheet.pdf, 248 Kb) [Download]
