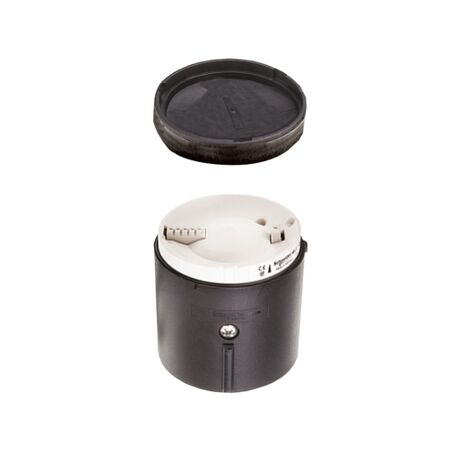

Tower Light Base Unit | Side Cable Entry | IP65 Rated | 70mm by Clipsal

BRAND: Clipsal
SKU: XVBC21A
$492.30 List price: $738.40
+
Tower light base unit with side cable entry and IP65 rating—ideal for industrial machine status indication. Built for durability with glass reinforced polyamide, perfect for creating complete tower light systems.

Product Name/Title: Harmony XVB, Base unit with cover, side cable entry, plastic, black, 70mm, AS-Interface connection

Brand: Clipsal

SKU: XVBC21A

Alternatively Known As: Harmony XVB Base Unit, Tower Light Base Unit, AS-Interface Base Unit

Technical Specifications
  • Material: Glass reinforced polyamide
  • IP Rating: IP65 conforming to IEC 60529
  • Rated supply voltage: 19.2...30 V AC
  • Current consumption: 250 mA under load via AS-Interface line
  • Shock resistance: 25 gn conforming to IEC 60068-2-27
  • Vibration resistance: 5 gn conforming to IEC 60068-2-6
  • Rated insulation voltage: 250 V conforming to IEC 60947-1
  • Rated impulse withstand voltage: 4 kV conforming to IEC 60947-1
  • Dimensions (H x L x W): 70mm x 70mm x 70mm
  • Weight: 0.19 kg
Key Features
  • Designed for use with indicator banks to create complete tower lights.
  • Made of glass reinforced polyamide for durability.
  • Side cable entry for flexible installation.
  • NEMA 4X protection for indoor use.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Machine status indication
  • Commercial: Tower light systems
Standards & Compliance
  • Complies with AS-Interface No 25701, IEC 60947-5-1
Environmental Benefits
  • Complies with environmental regulations and standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XVB Base Unit with Cover is available now for immediate purchase. Ideal for industrial applications requiring clear machine status indication.

XVBC21A (XVBC21A, 640 Kb) [Download]
