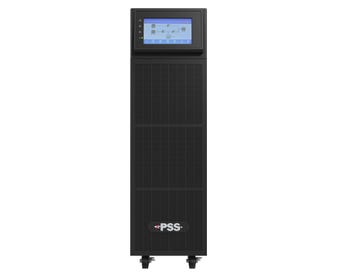

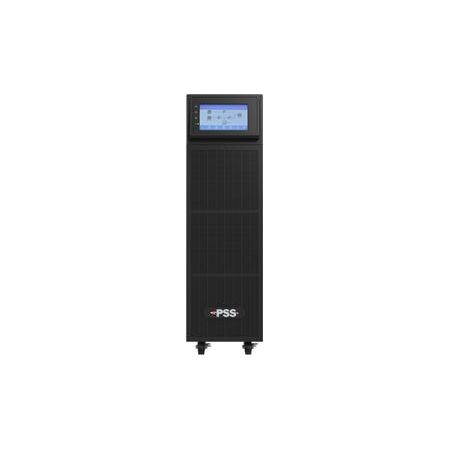

Tower UPS 10kVA Online Without Batteries PMU
PMU tower UPS features 10kVA capacity supplied without batteries for external or internal battery packs. Ideal for server rooms and critical loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PMU10T UPS, PMU-T 10kVA 9kW UPS, Three-Phase Online UPS, Batteryless Tower UPS
Technical Specifications
- Rated Capacity: 10,000 VA / 9,000 W
- Topology: Online double-conversion UPS
- Input/Output Configuration: Three-phase in / three-phase out
- Output Power Factor: 0.9
- Battery Configuration: Supplied without batteries; supports internal or external battery packs
- Online Efficiency: Greater than 94%
- ECO Mode Efficiency: Greater than 98%
- Parallel Redundancy: N+X parallel operation, up to four units
- Maximum Charging Current: 20 A, configurable
- Display: Intelligent LCD touch screen
- Communications: USB, RS232 and RS485; optional SNMP and relay cards
- Generator Compatibility: Supported
- Mounting Type: Tower
- Dimensions (H x L x W): 868mm x 900mm x 250mm
- Weight: 60 kg
Key Features
- Provides continuous online power protection for critical loads
- Supplied without batteries for site-specific runtime and battery-bank selection
- Narrow tower format suitable for server rooms and equipment areas
- Three-phase input and three-phase output for commercial and industrial installations
- Supports internal or external battery configurations
- N+X parallel redundancy supports up to four UPS units
- Configurable charging current up to 20 A
- LCD touch display with digital control and system status information
- Generator-compatible design
- Optional SNMP and relay communication cards available
Professional Installation Requirements
- Installation, battery connection and commissioning must be performed by a licensed electrical contractor or suitably qualified UPS technician. Hardwired connection, external battery protection, isolation, earthing, ventilation and commissioning should comply with the manufacturer's instructions and applicable Australian electrical requirements, including AS/NZS 3000 and the AS 62040 series.
Applications
- Server rooms and data centres
- Telecommunications and network infrastructure
- Medical and diagnostic equipment
- Industrial control systems
- Security, surveillance and access-control systems
- Critical commercial and infrastructure loads
Standards & Compliance
- AS 62040.1:2019 – Uninterruptible power systems, general and safety requirements
- AS IEC 62040.2 – Uninterruptible power systems, electromagnetic compatibility requirements
- AS IEC 62040.3 – Uninterruptible power systems, performance and test requirements
- AS/NZS 3000:2018 – Electrical installations, for permanent electrical installation and connection
Environmental Benefits
- Online efficiency above 94% reduces operating energy losses and heat generation
- ECO mode efficiency above 98% can reduce energy consumption where the application permits its use
- Batteryless supply allows the system to be matched with appropriately sized, serviceable battery banks and avoids unnecessary battery materials
- External battery configuration supports replacement of batteries without replacing the UPS power module
- Repairable and serviceable UPS architecture can extend equipment life and reduce electronic waste
Warranty Information
Standard PSS warranty is a 2-year return-to-base warranty from the original purchase date, subject to correct installation, commissioning, operating conditions and the manufacturer's warranty terms.
Available Now
Available through PMU/PSS and authorised Australian distributors; battery packs and battery cabinets are specified separately.
