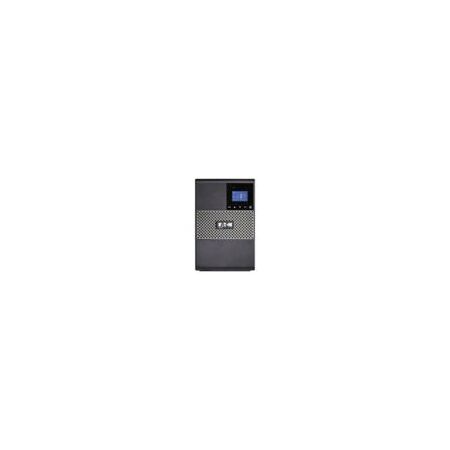

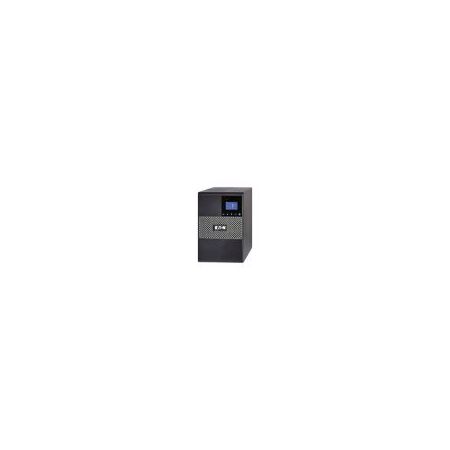

Tower UPS 1550VA | 1100W Power Capacity | LCD Display & User Replaceable Battery | Eaton
Eaton Tower UPS with 1550VA power capacity and 1100W output—ideal for protecting critical IT equipment and servers. Built for home and office use, featuring an LCD display for real-time monitoring and a user-replaceable battery for extended life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tower UPS 1550VA | 1100W Power Capacity | LCD Display & User Replaceable Battery | Eaton
Brand: Eaton
SKU: 9210-6600
Alternatively Known As: Eaton 5P UPS Tower, Eaton 5P 1550VA UPS, Eaton 5P 1100W UPS, Eaton Tower UPS 1550VA
Technical Specifications
- Power Capacity: 1550VA / 1100W
- Input Voltage Range: 160-294 V (adjustable to 150-294 V)
- Output Voltage Range: 230 V (+6%/-10%)
- Output Frequency: 50/60 Hz ±0.1% (autosensing)
- Battery Type: Sealed, lead-acid, user replaceable
- Communication Ports: 1 USB port, 1 RS232 serial port, relay contacts
- Noise Level: <40 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Relative Humidity: 0-90% non-condensing
- Form Factor: Tower, free standing
- Efficiency: Up to 98% at max load
- Phase: Single-phase input and output
- Dimensions (H x L x W): 230mm x 150mm x 445mm
- Weight: 15.6 kg
Key Features
- Line-interactive topology for reliable power conditioning
- User replaceable sealed lead-acid battery
- Automatic battery test and deep discharge protection
- Multiple output receptacles: (2) AU 10A and (3) IEC C13
- LCD display for real-time status monitoring
- Up to 98% efficiency at maximum load
- Communication ports including USB and RS232 serial port
- Potential free switch contact and expansion slot for optional communication card
- Auto shutdown function for safe power off
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Protecting critical IT equipment and servers from power interruptions
- Backup power for office and home electronics
- Power conditioning for sensitive devices
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- High efficiency up to 98% reduces energy waste and operational costs
- User replaceable battery promotes longer product lifecycle and reduced waste
Warranty Information
Standard Eaton warranty applies; typically 2-3 years depending on region and purchase terms.
Available Now
The Eaton 5P 1550VA / 1100W Tower UPS with LCD is available now for immediate purchase. Ideal for IT infrastructure, office equipment, and critical power backup applications.
