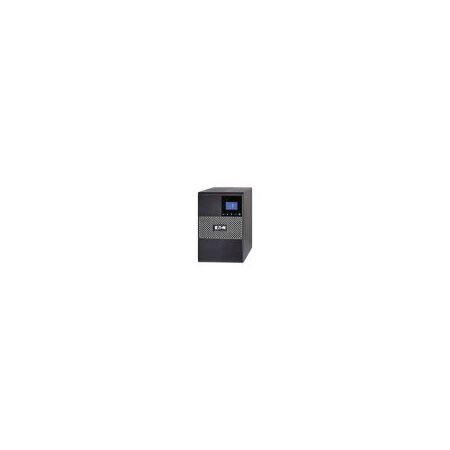

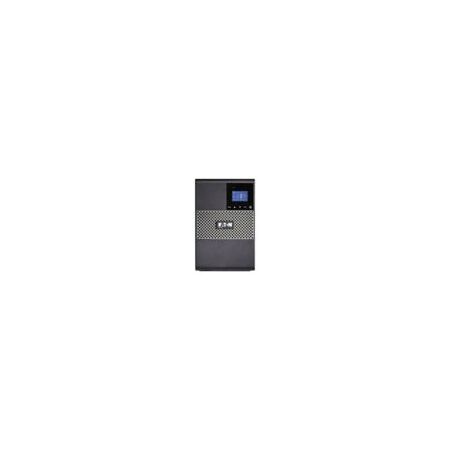

Tower UPS 650VA | 420W Power Capacity | LCD Display & User Replaceable Battery | Eaton
Eaton Tower UPS with 650VA power capacity and LCD display—ideal for protecting home and office electronics. Built for reliable power backup, featuring a user-replaceable battery and efficient operation at 96%.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tower UPS 650VA | 420W Power Capacity | LCD Display & User Replaceable Battery | Eaton
Brand: Eaton
SKU: 9210-3601
Alternatively Known As: Eaton 5P UPS 650VA, Eaton Tower UPS 420W, Eaton 5P 650VA UPS with LCD display
Technical Specifications
- Power Capacity: 650VA / 420W
- Input Voltage Range: 160-294 V (adjustable to 150-294 V)
- Output Voltage Range: 230 V (+6%/-10%)
- Output Frequency: 50/60 Hz ±0.1% (autosensing)
- Battery Type: Sealed, lead-acid, user replaceable
- Communication: USB port, RS232 serial port, relay contacts
- Noise Level: <40 dB at 1 meter
- Operating Temperature: 0° to 35°C
- Relative Humidity: 0-90% non-condensing
- Form Factor: Tower, free standing
- Efficiency at Max Load: 96%
- Phase: Single-phase input and output
- Dimensions (H x L x W): 230mm x 150mm x 345mm
- Weight: 7.8 kg
Key Features
- Line-interactive topology for reliable power protection
- 650VA / 420W power capacity
- Outputs: (2) AU 10A sockets and (3) IEC C13 sockets
- User replaceable sealed lead-acid battery
- Automatic battery test and deep discharge protection
- ABM or constant voltage charging method (user selectable)
- Communication ports: 1 USB port, 1 RS232 serial port, and relay contacts
- Potential free switch contact and expansion slot for optional communication card
- Efficiency at max load: 96%
- Noise level less than 40 dB at 1 meter
- Operating temperature range 0° to 35°C
- Relative humidity 0-90% non-condensing
- Free standing tower form factor
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper setup and compliance with electrical safety standards.
Applications
- Backup power supply for home and office computers
- Protection for network equipment and servers
- Power conditioning for sensitive electronics
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- High efficiency (96%) reduces energy consumption and heat generation
- User replaceable battery extends product life and reduces waste
Warranty Information
Standard Eaton warranty applies; refer to Eaton for specific warranty period and terms.
Available Now
The Eaton 5P 650VA / 420W Tower UPS with LCD is available now for immediate purchase. Ideal for protecting home and office electronics from power interruptions and surges.
