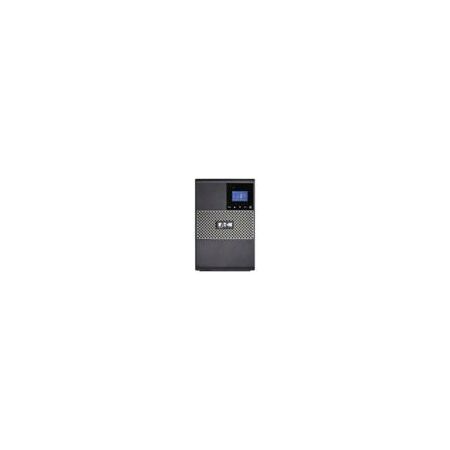

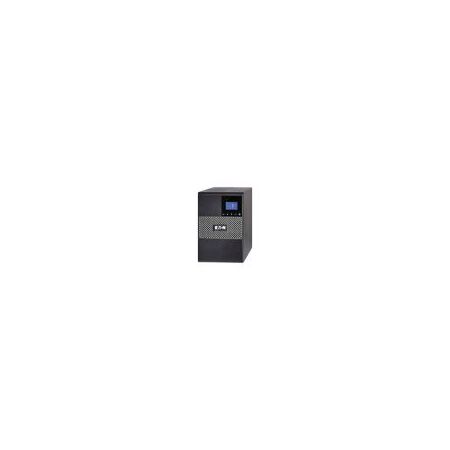

Tower UPS 850VA / 600W | Line-Interactive | LCD Display & User Replaceable Battery | Eaton
Eaton Tower UPS with 850VA / 600W power capacity and line-interactive topology—ideal for backup power supply for home and office computers. Built for network equipment protection, with an LCD display for easy status monitoring and a user-replaceable battery for extended life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tower UPS 850VA / 600W | Line-Interactive | LCD Display & User Replaceable Battery | Eaton
Brand: Eaton
SKU: 9210-3600
Alternatively Known As: Eaton 5P UPS 850VA, Eaton Tower UPS 600W, Eaton 5P 850VA UPS with LCD display, Eaton 5P UPS Battery Backup
Technical Specifications
- Power Capacity: 850VA / 600W
- Input Voltage Range: 160-294 V (adjustable to 150-294 V)
- Output Voltage Range: 230 V (+6%/-10%)
- Output Frequency: 50/60 Hz ±0.1% (autosensing)
- Topology: Line-interactive
- Battery Type: Sealed, lead-acid, user replaceable
- Communication Ports: 1 USB port, 1 RS232 serial port, relay contacts
- Noise Level: <40 dB at 1 meter
- Operating Temperature: 0° to 35°C
- Relative Humidity: 0-90% non-condensing
- Form Factor: Tower
- Efficiency at Max Load: 97%
- Phase: Single-phase input and output
- Dimensions (H x L x W): 230mm x 150mm x 345mm
- Weight: 10.4 kg
Key Features
- 850VA / 600W power capacity
- Line-interactive topology for voltage regulation
- User replaceable sealed lead-acid battery
- Automatic battery test and deep discharge protection
- Multiple output receptacles: (2) AU 10A and (3) IEC C13
- LCD display for status monitoring
- Communication ports: USB, RS232 serial port, and relay contacts
- Potential free switch contact and expansion slot for communication card
- High efficiency at max load (97%)
- Low noise level (<40 dB at 1 meter)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Backup power supply for home and office computers
- Protection for network equipment and servers
- Power conditioning for sensitive electronics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency design reduces energy consumption and heat generation
- User replaceable battery extends product life and reduces waste
- Automatic battery test ensures optimal battery health and performance
Warranty Information
Warranty details typically include coverage for manufacturing defects and battery performance; please refer to Eaton's official warranty policy for exact terms.
Available Now
The Eaton 5P 850VA / 600W Tower UPS with LCD is available now for immediate purchase. Ideal for protecting sensitive electronics in residential and commercial environments.
