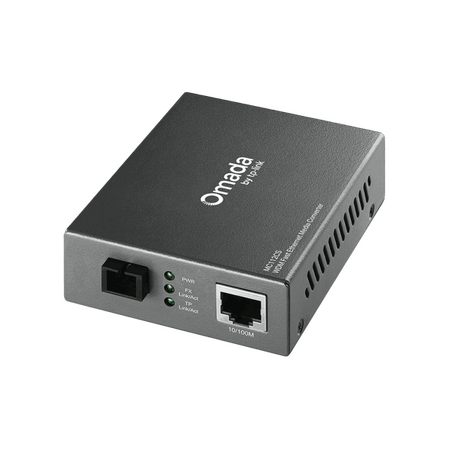

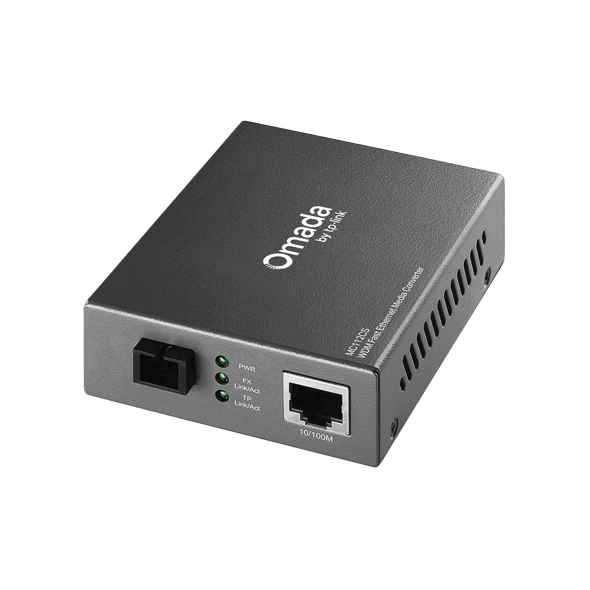

TP-LINK Media Converter | 10/100 RJ45 WDM | 1310nm TX/1550nm RX | 20km Distance | by TP-LINK
The TP-LINK Media Converter is designed for seamless Ethernet to fiber conversion, featuring 10/100 RJ45 WDM technology with 1310nm TX and 1550nm RX wavelengths. Ideal for extending network connections over long distances up to 20km, this converter is perfect for small to medium business networks, ensuring efficient data transmission and reliable connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fiber Media Converter, Ethernet to Fiber Converter, WDM Media Converter
Technical Specifications
- Standards: 802.3u 10/100Base-TX, 100Base-FX
- Transfer Mode: Auto-negotiation Half-Duplex / Full-Duplex
- Wavelength: 1310nm TX / 1550nm RX
- Transmission Distance: Up to 20km
- Interface: RJ45 10/100Base-TX, Fiber 100Base-FX
- Dimensions (H x L x W): 25mm x 70mm x 100mm
- Weight: 0.3 kg
Key Features
- Complies with 802.3u 10/100Base-TX and 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- WDM technology for transmitting and receiving data on a single fiber
- Extends fiber distance up to 20km
Professional Installation Requirements
- Installation by a qualified network technician is recommended to ensure proper fiber optic cable handling and device configuration.
Applications
- Network extension for small to medium business networks
- Fiber optic data transmission over long distances
- Connecting Ethernet devices over fiber optic cables
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces need for additional fiber cables by using WDM technology
- Supports energy-efficient data transmission over long distances
Warranty Information
3 years warranty from the manufacturer.
Available Now
The TP-LINK Tapo Media Converter is available now for immediate purchase. Ideal for extending network connections over fiber optic cables in commercial and industrial environments.
