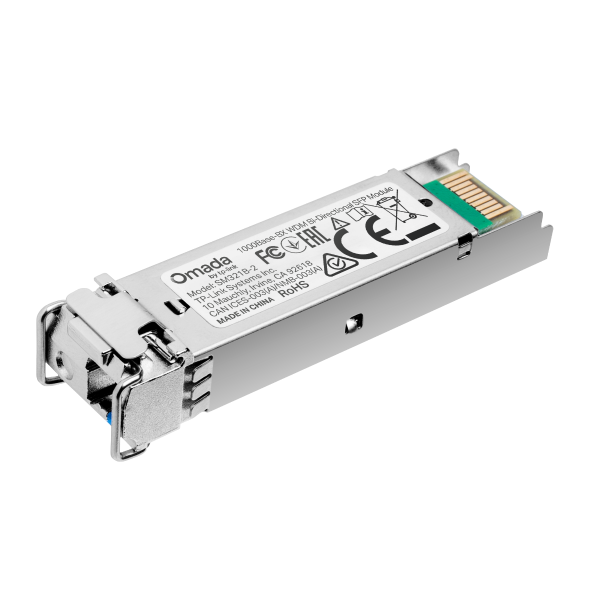

TP-LINK OMADA 1000BASE-BX WDM Bi-Directional SFP Module | Up to 2 km Transmission | Supports DDM | by TP-LINK
The TP-LINK OMADA 1000BASE-BX WDM Bi-Directional SFP Module is designed for efficient fiber optic communication, supporting up to 2 km transmission over single-mode fiber. Ideal for network infrastructure in data centers and enterprise networks, this module features Digital Diagnostic Monitoring (DDM) for real-time performance tracking and is hot-swappable for easy installation and maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 1000BASE-BX SFP Module, Bi-Directional SFP Transceiver, Single-Mode Fiber SFP, 1G SFP Module
Technical Specifications
- Standard: 1000Base-BX
- Transmission Distance: Up to 2 km
- Fiber Type: 9/125 μm Single-Mode Fiber
- Interface: Small Form Pluggable (SFP)
- Supports Digital Diagnostic Monitoring (DDM)
- Hot Swappable: Yes
- Dimensions (H x L x W): 8mm x 56mm x 13mm
- Weight: 0.1 kg
Key Features
- Supports 1000Base-BX standard for bi-directional data transmission
- Up to 2 km transmission distance over 9/125 μm single-mode fiber
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM) for real-time module monitoring
- Hot-swappable for easy installation and maintenance
Professional Installation Requirements
- Installation by a qualified network technician or IT professional is recommended to ensure proper handling and configuration.
Applications
- Network infrastructure for data centers
- Enterprise and campus networks
- Telecommunications and service provider networks
- Fiber optic communication requiring 2 km single-mode transmission
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables energy-efficient network operation by supporting low-power fiber optic communication
- Reduces need for additional cabling by supporting bi-directional data transmission on a single fiber
Warranty Information
3 years warranty provided by the manufacturer.
Available Now
The TP-LINK OMADA 1000BASE-BX WDM Bi-Directional SFP Module is available for immediate purchase, ideal for upgrading or expanding fiber optic network infrastructure.
