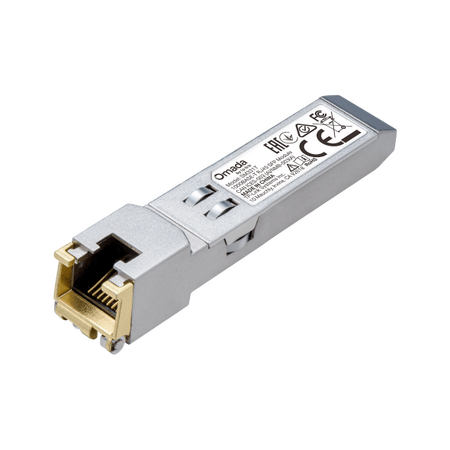

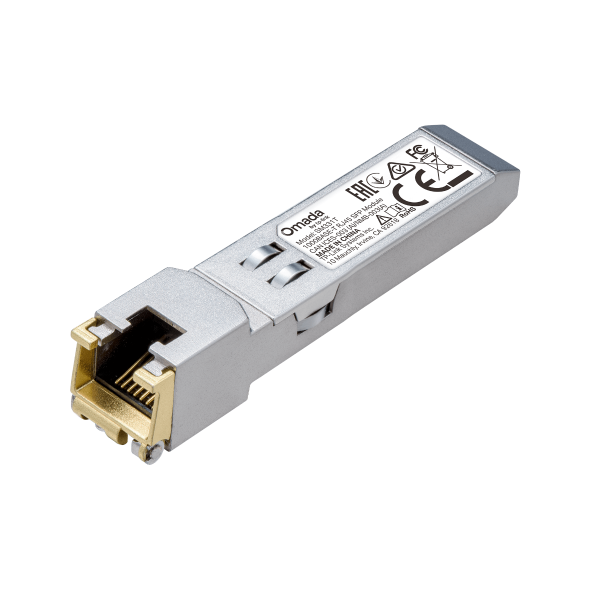

TP-LINK OMADA 1000BASE-T RJ45 SFP MODULE | 10/100/1000Base-T Support | TX Disable Function | Hot-Pluggable Design | by TP-LINK
The TP-LINK OMADA 1000BASE-T RJ45 SFP Module offers seamless 10/100/1000Base-T operation, making it perfect for high-speed data transmission in commercial and enterprise networks. With a TX Disable function for efficient port management and a hot-pluggable design for easy installation, this module is built for reliability and performance in network infrastructure setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Gigabit RJ45 SFP Module, 1000BASE-T Copper SFP Transceiver, TP-LINK RJ45 SFP Module
Technical Specifications
- Supports 10/100/1000Base-T operation
- TX Disable function
- Reach: 100 meters over UTP Cat 5e or above cable
- Operating temperature range: 0-70°C
- Compliant with IEEE Std 802.3, 802.3ab, 802.3x, INF 8074i, SFF-8472
- Fully metallic enclosure for low EMI
- Power dissipation: 0.5 W typical, 0.8 W max
- Dimensions (H x L x W): 8mm x 56mm x 13mm
- Weight: 0.1 kg
Key Features
- Supports 10/100/1000Base-T operation
- TX Disable function for port management
- Hot-pluggable SFP footprint for easy installation
- Fully metallic enclosure to reduce EMI
- Low power dissipation (0.5 W typical, 0.8 W max)
Professional Installation Requirements
- Installation by a qualified network technician or IT professional is recommended to ensure proper configuration and operation.
Applications
- Network infrastructure for commercial and enterprise environments
- High-speed data transmission over copper cabling
- Use in switches, routers, and media converters supporting SFP modules
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage and operational costs
- Metallic enclosure enhances durability, reducing electronic waste
Warranty Information
3 years warranty provided by the manufacturer.
Available Now
The TP-LINK OMADA 1000BASE-T RJ45 SFP Module is available for immediate purchase, ideal for upgrading network infrastructure with reliable gigabit connectivity.
