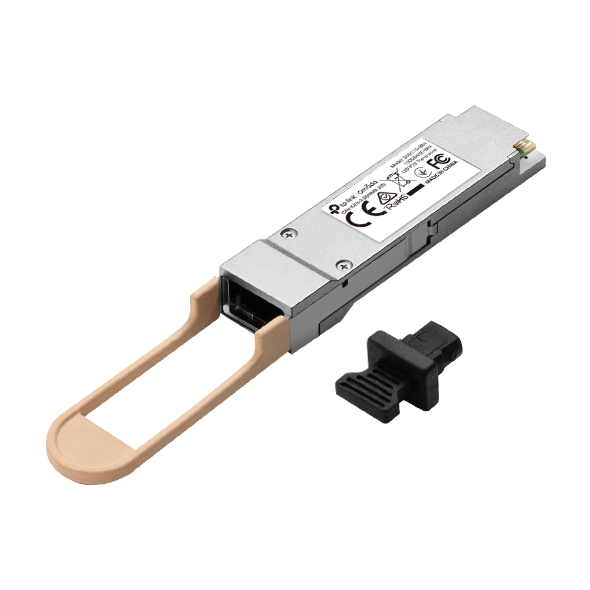

TP-LINK OMADA 100GBASE-SR4 QSFP28 Transceiver | Multi-Mode | 100M Distance | Hot-Pluggable Design | by TP-LINK
The TP-LINK OMADA 100GBASE-SR4 QSFP28 Transceiver is designed for high-speed data transmission, supporting multi-mode fiber with a maximum distance of 100 meters. Ideal for data centers and enterprise networks, this hot-pluggable transceiver ensures flexibility and compatibility with 100G and 40G QSFP28 interfaces, making it perfect for high-performance computing and telecommunications applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 100G QSFP28 Transceiver, 100GBASE-SR4 Module, Multi-mode QSFP28 Transceiver
Technical Specifications
- Standard: 100GBASE-SR4
- Interface: QSFP28
- Fiber Type: Multi-mode
- Maximum Transmission Distance: 100 meters
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-pluggable design
- Operating Temperature: Wide range compatible
- Compatible with 100G and 40G QSFP28 ports
- Dimensions (H x L x W): 8mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Supports 100GBASE-SR4 multi-mode fiber
- Digital Diagnostic Monitoring (DDM) support
- Hot-pluggable for maximum flexibility
- Wide operating temperature range
- Compatible with 100G/40G QSFP28 interfaces
Professional Installation Requirements
- Installation by a qualified network technician is recommended to ensure proper handling and configuration.
Applications
- Data centers for high-speed network connections
- Enterprise network infrastructure
- Telecommunications for high bandwidth data transmission
- High-performance computing clusters
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient design reduces power consumption in network infrastructure
- Supports longer transmission distances reducing the need for additional hardware
Warranty Information
3 years warranty provided by the manufacturer.
Available Now
The TP-LINK OMADA 100GBASE-SR4 QSFP28 Transceiver is available for immediate purchase, ideal for high-speed data transmission in enterprise and data center networks.
