Trade Discount 17%

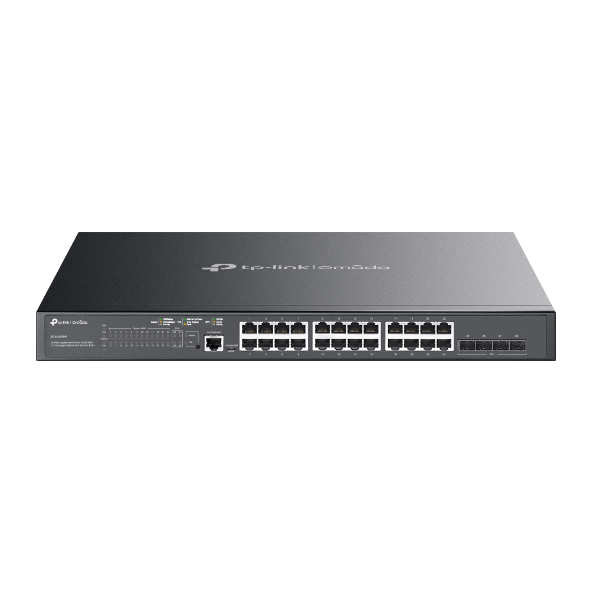

TP-LINK OMADA 24-Port Managed Gigabit L2+ Rack Switch | 24 PoE+ Ports | 4x 10G SFP+ Slots | 384W Power Budget | by TP-LINK
The TP-LINK OMADA 24-Port Managed Gigabit L2+ Rack Switch is designed for enterprise networks, featuring 24 PoE+ ports with up to 30W output per port and 4x 10G SFP+ slots for high-speed uplinks. Ideal for office and commercial building infrastructure, this switch supports centralized cloud management and static routing, ensuring efficient data transfer and reliable PoE support for surveillance systems and wireless access points.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TP-LINK OMADA 24-Port PoE+ Switch, TP-LINK Managed Gigabit Switch, OMADA L2+ Rack Switch
Technical Specifications
- Ports: 24× Gigabit 802.3af/at PoE+ ports, 4× 10 Gbps SFP+ slots
- PoE Budget: 384 W total with up to 30 W per port
- Management: Cloud-based via web or Omada app, standalone via web, CLI, SNMP, RMON
- Routing: Static Routing supported
- Network Features: VLAN, ACL, QoS, IGMP Snooping, OAM, DDM
- Protection: ERPS for rapid recovery in ring topology
- Casing: Durable metal, rack-mountable
- Dimensions (H x L x W): 44mm x 220mm x 440mm
- Weight: 5.5 kg
Key Features
- 24 Gigabit 802.3af/at PoE+ ports with up to 30 W output per port
- 4× 10 Gbps SFP+ slots for high-speed uplinks
- 384 W total PoE budget
- Centralised cloud management via web or Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing for efficient internal traffic routing
- Supports VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS for rapid protection and recovery in ring topology
- Durable metal casing and rack-mountable design
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Enterprise networks requiring high-speed data transfer and PoE support
- Office and commercial building network infrastructure
- Data centers and server rooms
- Surveillance systems with PoE cameras
- Wireless access point deployments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient design reduces power consumption during operation
- Supports centralized management to optimize network resource usage
Warranty Information
5 years warranty provided by the manufacturer.
Available Now
The TP-LINK OMADA 24-Port Managed Gigabit L2+ Rack Switch with PoE+ and 10G SFP+ is available now for immediate purchase. Ideal for enterprise and commercial network infrastructure requiring high performance and reliable PoE support.
