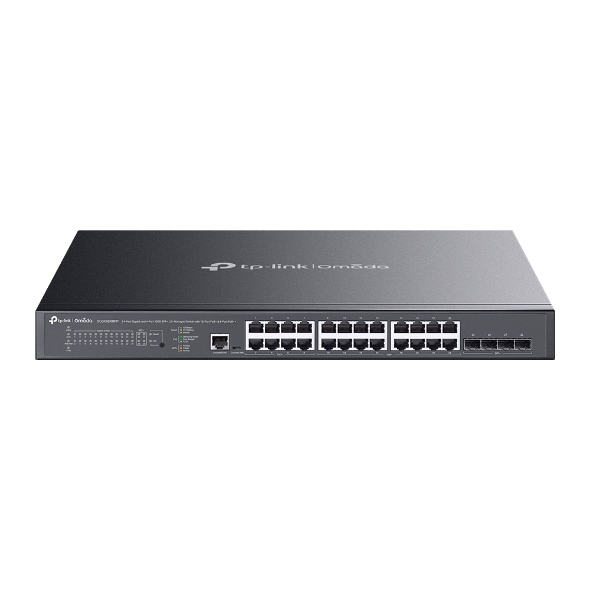

TP-LINK OMADA 24-Port Managed Gigabit L2+ Rack Switch | PoE+ (16) & PoE++ (8) | 500W Power Budget | by TP-LINK
The TP-LINK OMADA 24-Port Managed Gigabit L2+ Rack Switch is designed for enterprise networks, featuring 16 PoE+ ports and 8 PoE++ ports with a total power budget of 500W. Ideal for high-speed data transfer and centralized cloud management, this switch supports advanced Layer 2+ features, ensuring reliable performance in commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TP-LINK Omada 24-Port PoE Switch, Managed Gigabit Network Switch, L2+ Rackmount Switch
Technical Specifications
- 4× 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports with max 90 W PoE budget per port
- 16× Gigabit 802.3af/at PoE+ ports with max 30 W budget per port
- 500 W total PoE power budget
- Management: Cloud-based via web or Omada app, standalone via web, CLI, SNMP, RMON
- Network features: Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, DDM
- ERPS support for rapid ring topology recovery
- Rack-mountable metal casing
- Dimensions (H x L x W): 44mm x 220mm x 440mm
- Weight: 5.5 kg
Key Features
- 4× 10 Gbps SFP+ slots for high-speed uplinks
- 8× Gigabit 802.af/at/bt PoE++ ports with up to 90 W PoE budget per port
- 16× Gigabit 802.3af/at PoE+ ports with up to 30 W budget per port
- 500 W total PoE power budget
- Centralized cloud management via web or Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Supports Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS for rapid protection and recovery in ring topology
- Durable metal casing and rack-mountable design
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure proper setup and compliance with electrical and network standards.
Applications
- Enterprise networks requiring high-speed data transfer and power over Ethernet
- Office and commercial environments needing centralized cloud management
- Network setups requiring advanced Layer 2+ features and redundancy
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient design reduces power consumption during operation
- Supports centralized management to optimize network resource usage
Warranty Information
5 years warranty covering hardware defects and technical support.
Available Now
The TP-LINK OMADA 24-Port Managed Gigabit L2+ Rack Switch is available for immediate purchase, ideal for enterprise and commercial network infrastructure requiring high power PoE and advanced management.
