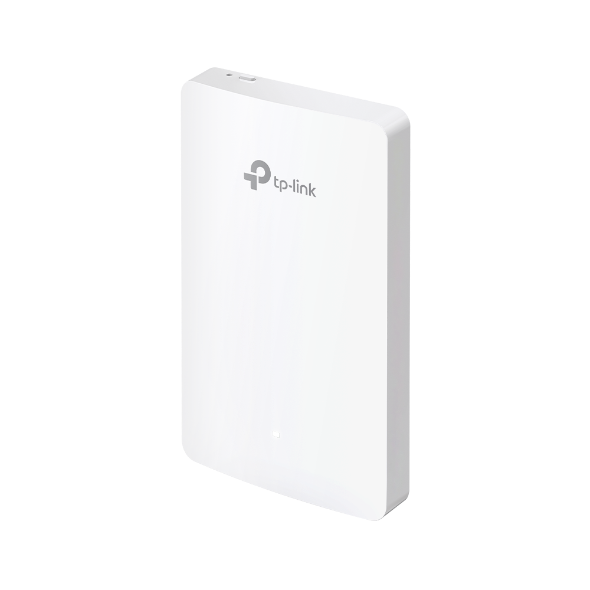

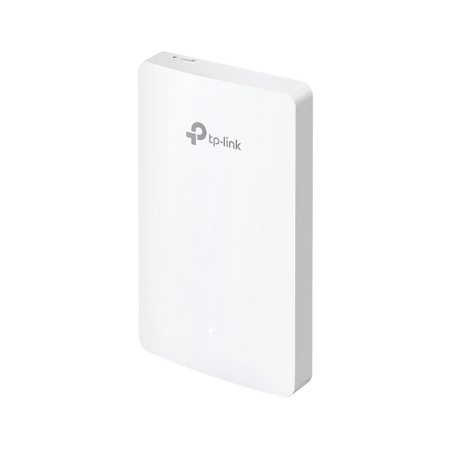

TP-LINK OMADA AX1800 Wi-Fi 6 Dual-Band Wall Plate Access Point | 1775 Mbps Speed | 4 Gigabit Ports | PoE Support | by TP-LINK
The TP-LINK OMADA AX1800 Wi-Fi 6 Dual-Band Wall Plate Access Point delivers lightning-fast speeds of up to 1775 Mbps, making it perfect for homes, offices, and commercial spaces. With four Gigabit Ethernet ports and Power over Ethernet (PoE) support, it simplifies installation while providing secure guest access through multiple authentication options. Ideal for enhancing network performance in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wi-Fi 6 Wall Plate Access Point, Dual-Band PoE Access Point, TP-LINK Omada AX1800 Access Point
Technical Specifications
- Wi-Fi Speed: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz (total 1775 Mbps)
- Ethernet Ports: 4 Gigabit ports (1 uplink, 3 downlink), with one downlink port supporting PoE pass-through
- PoE Standard: 802.3af/at
- Management: Omada SDN cloud-based centralized management
- Installation: Compatible with 86 mm, EU, and US standard junction boxes
- Security: Multiple guest authentication options including SMS and voucher
- Dimensions (H x L x W): 86mm x 40mm x 86mm
- Weight: 0.5 kg
Key Features
- Simultaneous dual-band Wi-Fi 6 speeds up to 1775 Mbps (574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz)
- Four Gigabit Ethernet ports including one uplink and three downlink ports with PoE pass-through support
- Centralized management via Omada SDN for cloud access and remote control
- Secure guest network with multiple authentication options such as SMS and voucher
- Easy installation compatible with 86 mm, EU, and US standard junction boxes
- Supports 802.3af/at Power over Ethernet (PoE)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper PoE wiring and compliance with local electrical standards.
Applications
- Residential: Homes and apartments requiring high-speed Wi-Fi
- Commercial: Offices, retail stores, and hospitality venues
- Enterprise: Businesses needing centralized network management and secure guest access
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient Wi-Fi 6 technology reduces power consumption while delivering high performance
- PoE support minimizes the need for additional power cables, reducing material use and installation impact
Warranty Information
5 years warranty provided by TP-LINK.
Available Now
The TP-LINK OMADA AX1800 Wi-Fi 6 Dual-Band Wall Plate Access Point is available for immediate purchase, ideal for enhancing network performance in residential, commercial, and enterprise environments.
