Trade Discount 17%

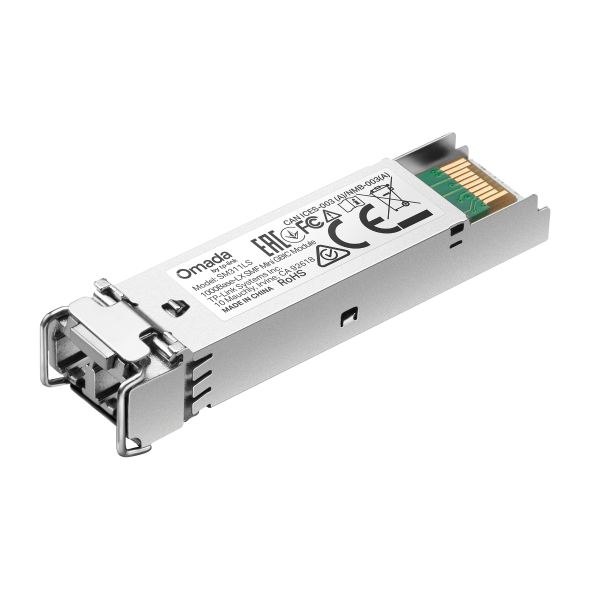

TP-LINK OMADA MINIGBIC SFP Module | Single Mode | 20KM Transmission | DDM Support | by TP-LINK
The TP-LINK OMADA MINIGBIC SFP Module is designed for high-performance network infrastructure, supporting up to 20 km transmission distance over 9/125 μm single-mode fiber. With Digital Diagnostic Monitoring (DDM) for real-time performance insights, this hot-pluggable module is perfect for enterprise and commercial networking environments, ensuring reliable long-distance fiber optic communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: SFP Transceiver Module, Single Mode Fiber Module, 20KM SFP, Fiber Optic Transceiver
Technical Specifications
- Transmission Distance: Up to 20 km
- Fiber Type: 9/125 μm Single-Mode Fiber (SMF)
- Digital Diagnostic Monitoring (DDM): Supported
- Compliance: Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Operating Temperature: 0-70°C
- Hot-Pluggable: Yes
- Dimensions (H x L x W): 8mm x 56mm x 13mm
- Weight: 0.1 kg
Key Features
- Supports up to 20 km transmission distance over 9/125 μm single-mode fiber
- Digital Diagnostic Monitoring (DDM) support for real-time performance monitoring
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-pluggable design for maximum flexibility
- Commercial product operating temperature range of 0-70°C
Professional Installation Requirements
- Installation by a qualified network technician is recommended to ensure proper handling and configuration.
Applications
- Network infrastructure for long-distance fiber optic communication
- Enterprise and commercial networking environments
- Data centers and telecommunications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables efficient long-distance data transmission reducing the need for additional network hardware
- Supports energy-efficient network infrastructure by optimizing fiber optic communication
Warranty Information
3 years warranty provided by the manufacturer.
Available Now
The TP-LINK OMADA MINIGBIC SFP Module is available for immediate purchase, ideal for enhancing network connectivity in commercial and enterprise environments.
