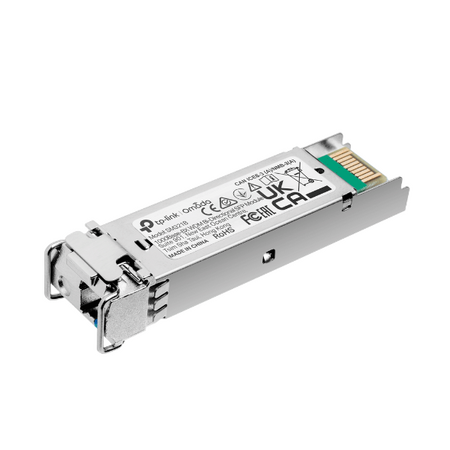

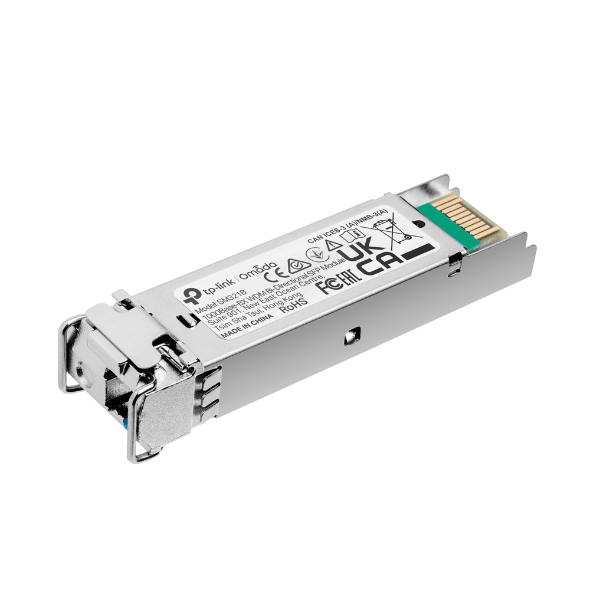

TP-LINK SFP Module | 1000BASE-BX Bi-Directional | Single Mode Fiber | 10km Transmission | by TP-LINK
The TP-LINK SFP Module is designed for high-speed data transmission with 1000BASE-BX bi-directional technology, supporting single mode fiber for distances up to 10 km. Ideal for telecommunications and data centers, this module ensures efficient connectivity while reducing fiber optic cable usage. With a 3-year warranty, it's perfect for enterprise networks requiring reliable long-distance connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: SFP Transceiver Module, Bi-Directional Fiber Module, 1000BASE-BX SFP, Single Mode SFP
Technical Specifications
- Technology: WDM Bi-Directional
- Fiber Type: Single Mode
- Data Rate: 1000BASE-BX (1 Gbps)
- Transmission Distance: 10 km
- Connector Type: SFP
- Wavelength: Bi-Directional wavelengths for Tx and Rx
- Dimensions (H x L x W): 8mm x 56mm x 13mm
- Weight: 0.1 kg
Key Features
- Supports WDM Bi-Directional technology
- Uses a single strand of fiber for cost savings
- Single mode fiber compatibility
- 10km transmission distance
- 3-year warranty
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper handling and connection.
Applications
- Telecommunications: Fiber optic network connections
- Data Centers: High-speed data transmission
- Enterprise Networks: Long-distance fiber connectivity
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces fiber optic cable usage by utilizing single strand fiber technology
- Energy-efficient operation reduces power consumption
Warranty Information
3 years warranty from the manufacturer.
Available Now
The TP-LINK Tapo Single Mode 1000BASE-BX Bi-Directional SFP Module is available now for immediate purchase. Ideal for telecommunications, data centers, and enterprise network applications.
