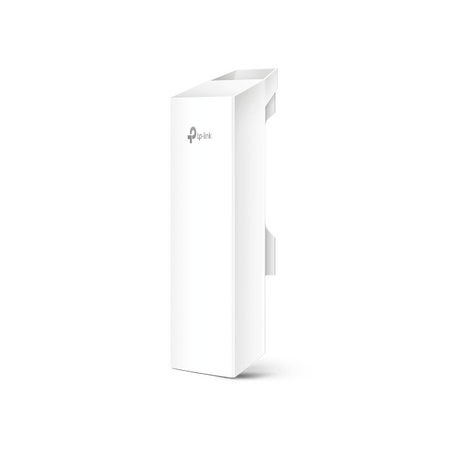

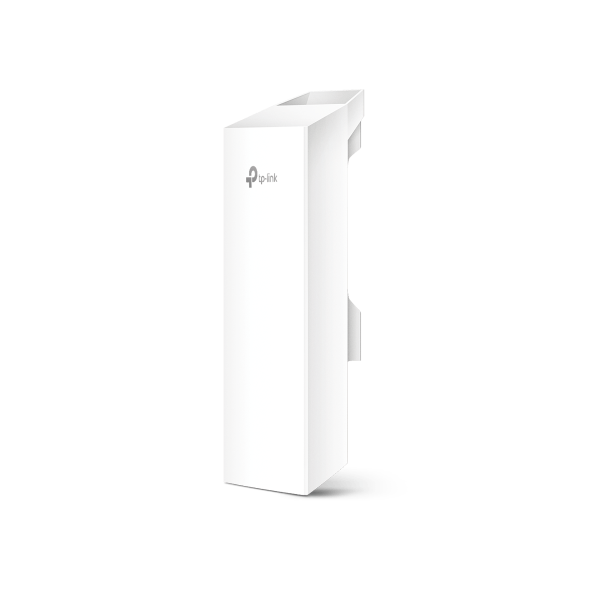

TP-LINK Wireless Outdoor CPE | 2.4GHz Frequency | 300Mbps Data Rate | 12dBi Antenna | by TP-LINK
The TP-LINK Wireless Outdoor CPE is designed for long-range outdoor networking, featuring a 2.4GHz frequency and a powerful 12dBi dual-polarized MIMO antenna. With a maximum data rate of 300Mbps and a wireless range exceeding 13km, it's perfect for WISP deployments and remote site network extensions. Built for reliable performance, this device supports multiple operation modes and centralized management for seamless connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Outdoor Wireless Access Point, Outdoor WiFi Bridge, Wireless CPE, Long Range Outdoor WiFi
Technical Specifications
- Frequency: 2.4GHz
- Maximum Data Rate: 300Mbps
- Antenna: Built-in 12dBi 2x2 dual-polarized directional MIMO
- Transmission Power: Adjustable 0 to 30dBm (1000mW)
- Wireless Range: Over 13km with system-level optimizations
- Technology: TP-LINK Pharos MAXtream TDMA
- Operation Modes: AP, Client, AP Router, AP Client Router (WISP)
- Power Supply: Passive PoE up to 60 meters
- Management: Centralised via Pharos Control
- Dimensions (H x L x W): 70mm x 250mm x 200mm
- Weight: 0.8 kg
Key Features
- Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 30dBm/1000mW
- System-level optimizations for over 13km long-range wireless transmission
- TP-LINK Pharos MAXtream TDMA technology for improved throughput, capacity, and latency
- Multiple operation modes: AP, Client, AP Router, AP Client Router (WISP)
- Centralised Management System via Pharos Control
- Passive PoE adapter supports up to 60 meters (200 feet) for flexible deployment
- Remote device reset capability via PoE
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal antenna alignment, secure mounting, and proper PoE setup for reliable long-range performance.
Applications
- Outdoor wireless networking for long-range point-to-multipoint (PTMP) connections
- Wireless internet service provider (WISP) deployments
- Outdoor surveillance camera connectivity
- Remote site network extension
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables wireless connectivity reducing the need for physical cabling and infrastructure
- Supports energy-efficient wireless transmission with adjustable power settings
Warranty Information
3 years warranty from the manufacturer covering defects and hardware failures.
Available Now
The TP-LINK Wireless Outdoor CPE is available for immediate purchase, ideal for outdoor wireless networking and long-range connectivity applications.
