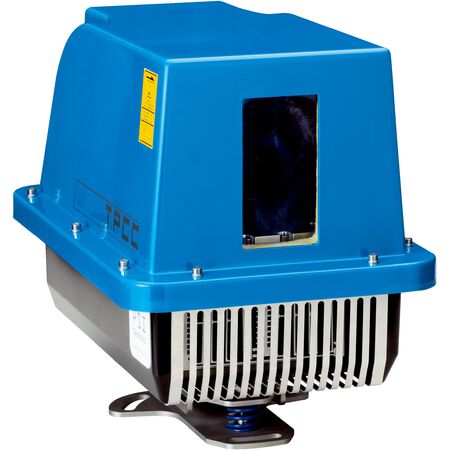

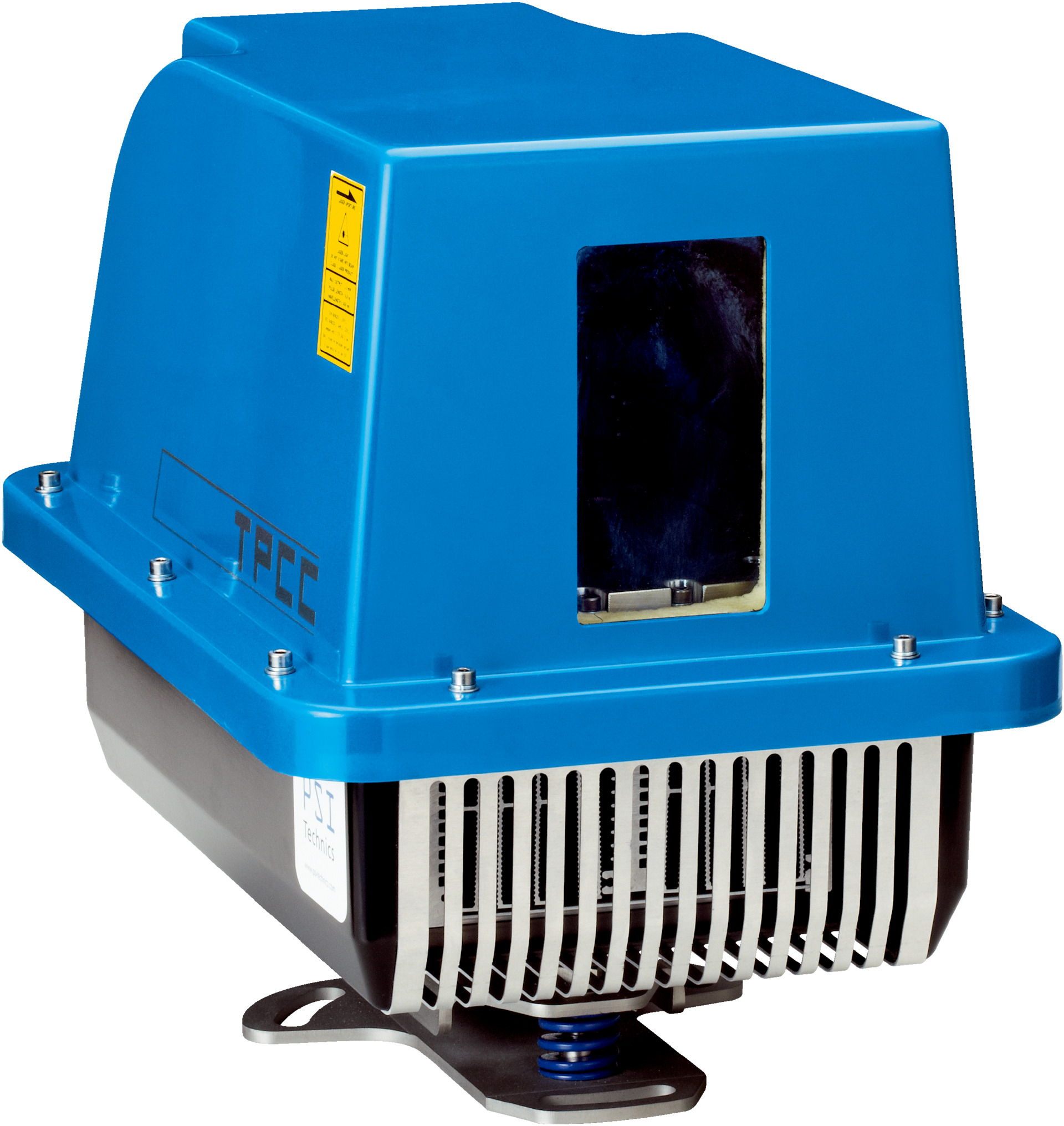

TPCC Cooling Housing DME4000/DME5000 | Peltier Cooling Unit | IP55 & IP54 Rated | by SICK
The TPCC Cooling Housing DME4000/DME5000 is designed for effective cooling and protection of electronic devices, featuring an integrated Peltier cooling unit and robust polyamide 6 housing. With an enclosure rating of IP55 for horizontal and IP54 for vertical mounting, it operates efficiently in ambient temperatures from -40 °C to +75 °C, making it ideal for industrial automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TPCC Cooling Housing DME4000/DME5000 | Peltier Cooling Unit | IP55 & IP54 Rated | by SICK
Brand: SICK
SKU: 6036180
Alternatively Known As: Cooling enclosure, Peltier cooler housing, Device cooling unit, Industrial cooling housing
Technical Specifications
- Operating voltage: 24 V DC to 30 V DC
- Power consumption: 11 A at 24 V DC
- Enclosure rating: IP55 (horizontal mounting), IP54 (vertical mounting)
- Ambient operating temperature: -40 °C to +75 °C
- Storage temperature: -40 °C to +50 °C
- Housing material: Polyamide 6
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 7.5 kg
Key Features
- Peltier cooling unit integrated for efficient temperature regulation
- Polyamide 6 housing providing robust protection
- Enclosure rating IP55 for horizontal mounting and IP54 for vertical mounting
- Operating voltage range from 24 V DC to 30 V DC
- Wide ambient operating temperature range from -40 °C to +75 °C
- Storage temperature range from -40 °C to +50 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and mounting orientation for optimal cooling performance.
Applications
- Cooling and protecting electronic devices and components
- Industrial automation environments requiring temperature control
- Enclosures needing reliable cooling solutions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient cooling reduces energy consumption of protected devices
- Durable housing extends device lifespan, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The TPCC Cooling Housing DME4000/DME5000 by SICK is available for immediate purchase, ideal for industrial and automation applications requiring reliable device cooling and protection.
