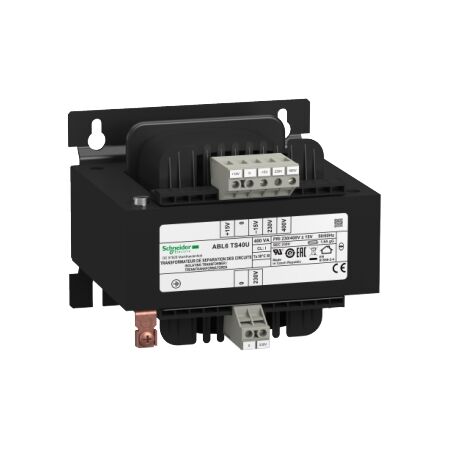

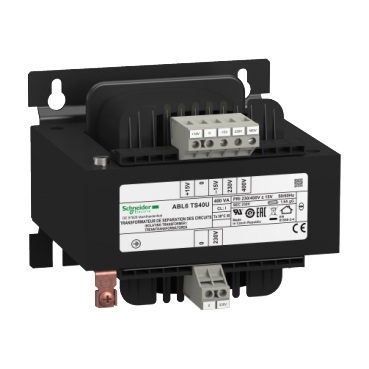

Transformer 400VA 240V Output | IP20 Rated | Thermal Protection | Panel or Surface Mount | @Pack of 1 | by Clipsal
The Transformer 400VA 240V Output is designed for reliable voltage transformation in various applications, featuring robust construction and thermal protection for enhanced safety. Ideal for industrial control panels, building automation systems, and commercial electrical installations, this transformer ensures efficient power distribution while complying with essential safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Transformer 400VA 240V Output | IP20 Rated | Thermal Protection | Panel or Surface Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHABL6TS40U
Alternatively Known As: Clipsal 400VA Transformer, 240V Output Transformer, SCHABL6TS40U, Power Isolation Transformer, Electrical Transformer 400VA
Technical Specifications
- Power Rating: 400VA
- Primary Voltage: 230-240V AC
- Secondary Voltage: 240V AC
- Frequency: 50/60Hz
- Mounting: Panel or surface mount
- Thermal protection included
- Enclosure: IP20 rated
- Operating temperature: -10°C to +40°C
- Dimensions (H x L x W): 150mm x 180mm x 120mm
- Weight: 6.5 kg
Key Features
- Provides 400VA power output at 240V
- Robust and reliable construction for continuous operation
- Suitable for isolating and stepping down/up voltage in various applications
- Designed for fixed installation
- Thermal protection for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial control panels
- Building automation systems
- Lighting circuits
- Machinery requiring isolated 240V supply
- Commercial and residential electrical installations
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by providing only the required voltage
- Reduces electrical waste and enhances equipment lifespan
- Supports safe and reliable power distribution
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHABL6TS40U Transformer 400VA 240V Output is available for immediate purchase. Ideal for industrial, commercial, and residential electrical installations requiring reliable voltage transformation.
