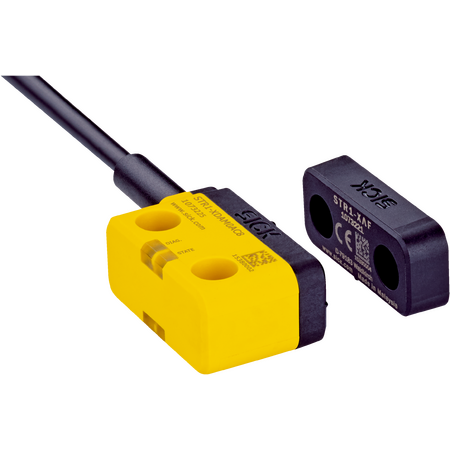

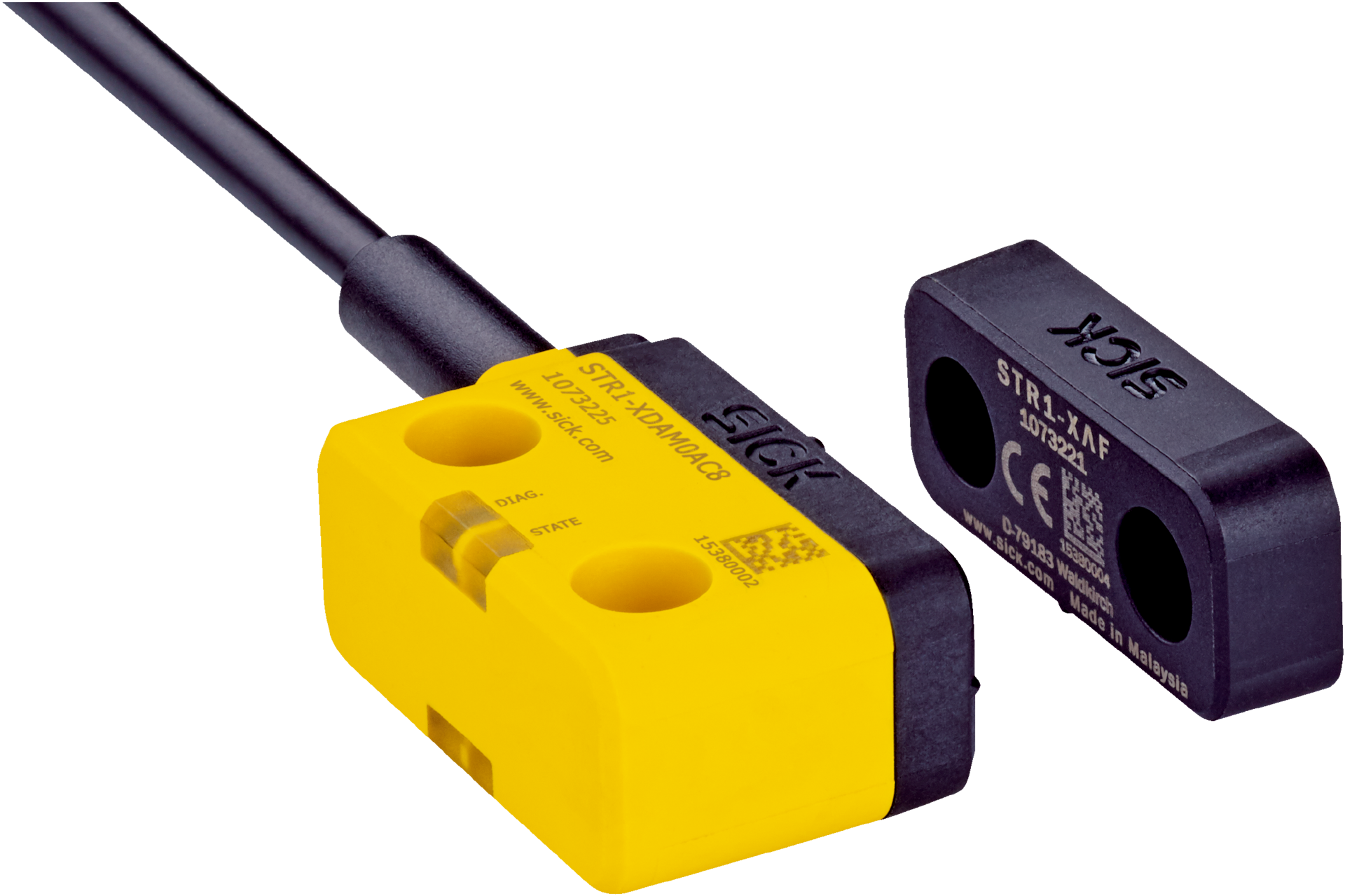

Transparent Safety Switch | RFID Sensor | SIL 3 & Category 4 | IP67/IP69K Rated | by SICK

BRAND: SICK
SKU: 1069568
$446.30 List price: $560.90
+ −
30 Days Return Electricians Unlock Trade Access
The Transparent Safety Switch is an RFID sensor designed for industrial safety systems, featuring two safe outputs and one auxiliary contact. With a high safety integrity level of SIL 3 and robust IP67/IP69K protection, it’s perfect for machine guarding and access control in manufacturing environments, ensuring reliable position monitoring and compliance with safety standards.

Alternatively Known As: Transparent Safety Switch, RFID Safety Sensor, Industrial Safety Switch, Safety Interlock Switch

Technical Specifications
  • Sensor principle: RFID
  • Number of safe outputs: 2
  • Auxiliary contact: 1 (complementary switching behavior to OSSDs)
  • Assured switch on distance Sao: 14 mm (-10 to +70 °C), 10 mm (-30 to -10 °C)
  • Assured switch off distance Sar: 28 mm
  • Active sensor surfaces: 3 (top, left, right sides)
  • Actuation directions: 5
  • Coding: Universally coded
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (EN ISO 13849)
  • Performance level: PL e (EN ISO 13849)
  • PFHD: 5.21 x 10^-9
  • Mission time: 20 years
  • Type: Type 4 (EN ISO 14119)
  • Actuator coding level: Low coding level
  • Safe state on fault: At least one OSSD off
  • Connection type: Cable, 5-wire, 10 m length
  • Cable diameter: 5.5 mm, conductor cross section: 0.12 mm²
  • Cable material: PVC, conductor material: Copper
  • Protection class: III (IEC 61140)
  • Supply voltage: 24 V DC (19.2 - 28.8 V DC)
  • Power consumption: 50 mA
  • Output current: ≤ 100 mA
  • Response time: 40 ms
  • Release time: 100 ms
  • Risk time: 80 ms
  • Switch-on time: 2.5 s
  • Enclosure rating: IP67, IP69K
  • Operating temperature: -30 °C to +70 °C
  • Vibration resistance: 10 Hz to 55 Hz, 1 mm
  • Shock resistance: 30 g, 11 ms
  • EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
  • Dimensions (H x L x W): 18mm x 26mm x 40mm
  • Weight: 0.423 kg
Key Features
  • Sensor with actuator using RFID principle
  • Two safe outputs with one auxiliary contact
  • Universally coded with five actuation directions
  • High safety integrity level SIL 3 and Category 4 compliance
  • Self-monitoring semiconductor outputs (OSSDs)
  • LED display elements with diagnostics and status indicators
  • Robust housing material VISTAL® with IP67 and IP69K protection
  • Wide ambient operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
  • Industrial safety systems requiring reliable position monitoring
  • Machine guarding and access control in manufacturing environments
  • Automation systems needing high safety integrity level components
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces replacement frequency and waste
  • Low power consumption of 50 mA supports energy efficiency
  • Complies with China RoHS and ECOLAB environmental standards
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK STR1-SAFM10P5 Transparent Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications.
