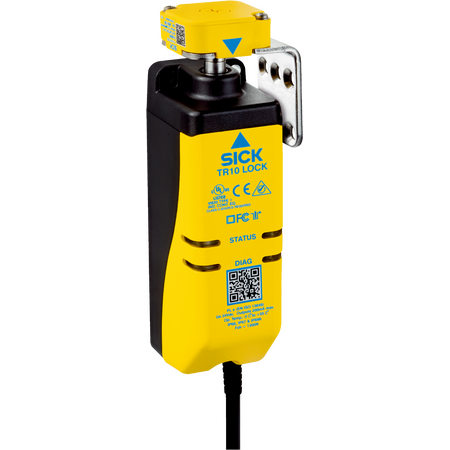

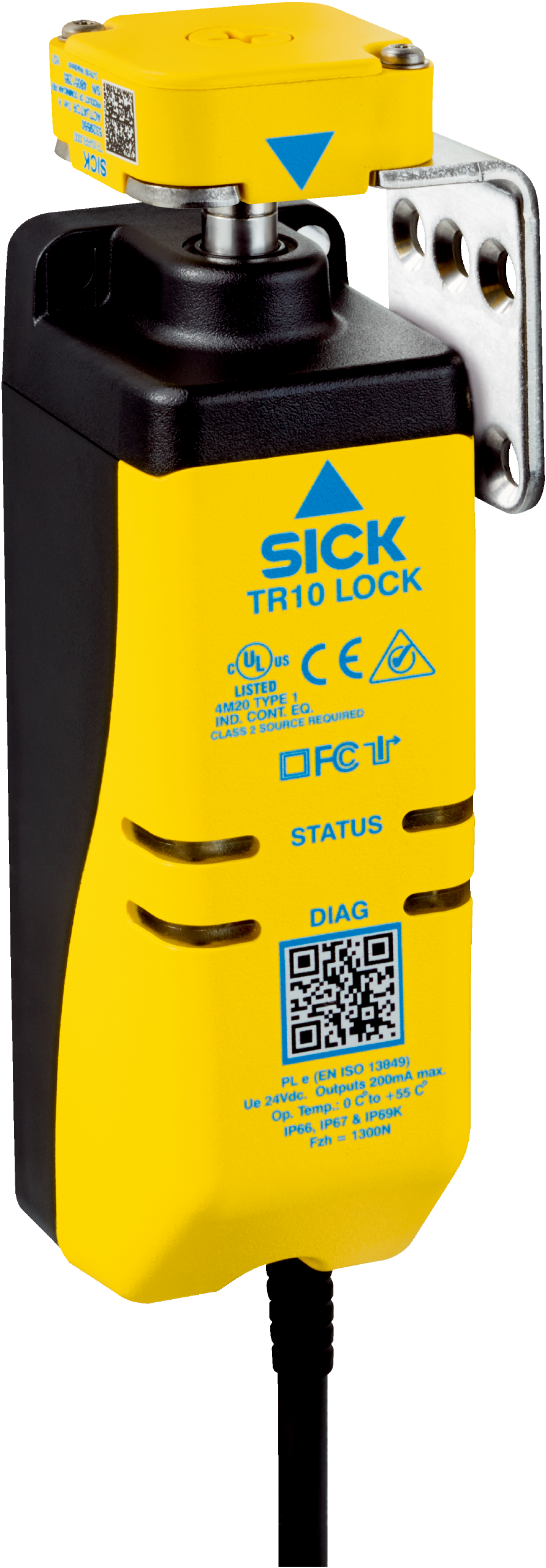

Transponder Safety Switch TR10-SRM01C | RFID Sensor | Power to Release | IP66, IP67, IP69K Rated | by SICK
The Transponder Safety Switch TR10-SRM01C features an RFID sensor principle and a power to release locking mechanism, making it ideal for industrial safety applications. With two safe outputs and a high safety integrity level of SIL 3, this switch ensures reliable operation in automation systems and machinery safety interlocks. Its robust design and IP66, IP67, IP69K ratings make it suitable for harsh environments, providing peace of mind in critical safety scenarios.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Switch, Transponder Safety Interlock, Safety Lock Switch, Power to Release Safety Switch
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Number of safe outputs: 2
- Coding: Universally coded
- Locking force Fmax: 1,690 N (EN ISO 14119)
- Locking force FZh: 1,300 N (EN ISO 14119)
- Retaining force: 0 N
- Actuation directions: 4
- Approach speed: ≥ 2 mm/s
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.1 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state on fault: At least one safety-related semiconductor output (OSSD) OFF
- Switching behavior of OSSDs: Locking monitoring
- Safe series connection: With T-connector (no diagnostics), Flexi Loop (with diagnostics)
- Connection type: Cable with plug M12, 8-pin
- Cable length: 0.2 m
- Max connecting cable length: ≤ 200 m
- Cable diameter: 6.5 mm
- Conductor cross section: 0.25 mm²
- Bend radius fixed installation: > 7 x cable diameter
- Bend radius moving cable: > 14 x cable diameter
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Stainless steel
- Display elements: LEDs with diagnostics and status display
- Protection class: II (IEC 61140)
- Contamination rating: 3
- Classification cULus: Class 2
- Usage category: DC-13 (IEC 60947-5-1)
- Rated operating current: 200 mA (24 V DC)
- Rated insulation voltage Ui: 75 V
- Rated impulse withstand voltage Uimp: 1,000 V
- Supply voltage VS: 24 V DC (20.4 V DC to 26.4 V DC)
- Output current: ≤ 200 mA
- Peak current: 400 mA, 100 ms
- Power consumption: 2.5 W
- Response time: 100 ms first switch, 50 ms subsequent
- Release time: 600 ms
- Risk time: 100 ms
- Switch-on time: 7 s
- Mechanical life: 500,000 switching cycles
- Housing material: ABS
- Locking bolt material: Stainless steel 304
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: 0°C to +55°C
- Storage temperature: -25°C to +75°C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- EMC: IEC 60947-5-3
- Dimensions (H x L x W): 100mm x 30mm x 50mm
- Weight: 0.4 kg
Key Features
- RFID sensor principle for reliable detection
- Power to release locking principle
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Universally coded actuator with low coding level
- Locking force up to 1,690 N (EN ISO 14119)
- Four actuation directions supported
- LED display elements with diagnostics and status indicators
- High safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Safe series connection with T-connector or Flexi Loop
- Protection class II and contamination rating 3
- Robust housing with ABS and stainless steel locking bolt
- IP66, IP67, IP69K enclosure rating for harsh environments
- Wide ambient operating temperature range 0°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch systems and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety applications requiring RFID-based safety switches
- Machinery safety interlocks
- Access control for hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 2.5 W supports energy efficiency
- Robust IP69K rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR10-SRM01C Transponder Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
