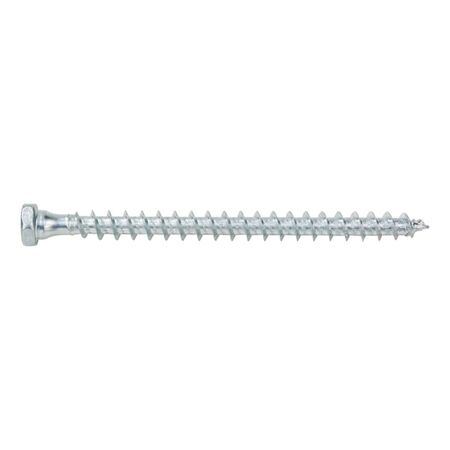

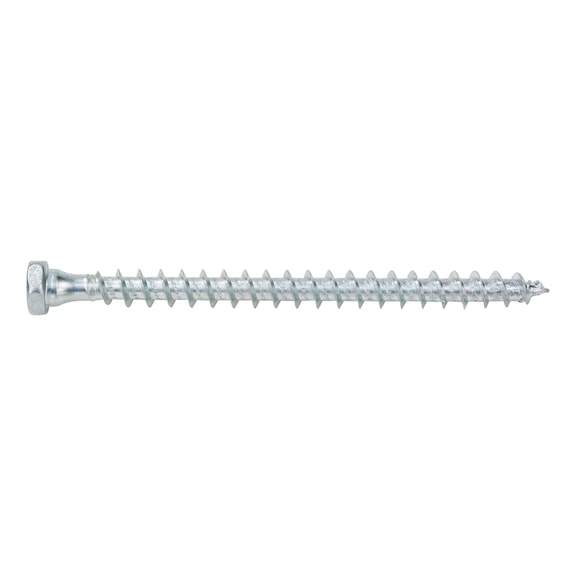

Transport Anchor Screw ASSY 30 | 12mm Diameter | 180mm Length | Zinc Plated | @Pack of 50 | by Wurth
The ASSY 30 Combi Transport Anchor Screw is designed for structural woodwork, featuring a 12mm diameter and 180mm length for optimal strength. With a special hexagon head and asymmetrical coarse thread, it ensures high tensile strength and secure fastening for timber components. Ideal for professionals in construction and carpentry, this screw is RoHS-compliant and perfect for various timber applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Transport Anchor Screw ASSY 30 | 12mm Diameter | 180mm Length | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 184212181
Alternatively Known As: Transport anchor screw, Hex head wood screw, Structural timber screw, ASSY 30 anchor screw
Technical Specifications
- Nominal diameter: 12 mm
- Length: 180 mm
- Head type: Hexagon head
- Head height: 5.5 mm
- External drive: WS17
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread length: 145 mm
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Board plywood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood
- Core diameter: 7.2 mm
- Tip shape: Tip with counter thread
- Tip angle: 34 degrees
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 5.5mm x 180mm x 17mm
- Weight: 0.15 kg
Key Features
- Designed for transporting wooden components made from coniferous timber, laminated timber, timber veneer, or plywood.
- Special screw heads hook into the recess in the ball-headed anchor.
- Asymmetrical coarse thread with large threaded part for high tensile strength.
- Large SW17 hexagon head with shaft reinforcement for high transmission of forces and optimum fit.
- Integrated AW40 drive for flexible screwing.
- Mating thread to reduce splitting forces.
- Galvanised steel, blue passivated (A2K), without end mill.
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural timber fastening and load calculations to ensure safety and compliance.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Metal wood connections
- Transport anchor for wooden components
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances.
- Durable zinc plating extends product life reducing replacement frequency.
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth ASSY 30 Combi Transport Anchor Screw is available for immediate purchase, ideal for structural timber and transport anchoring applications.
