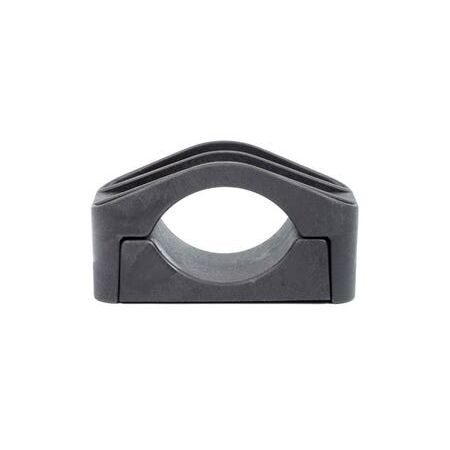

Trefoil Cable Cleat 118-150mm Dutch Clamp
Dutch Clamp trefoil cable cleat features a 118-150mm cable range for three single-core cables. Ideal for HV and large LV trefoil cable runs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Dutchclamp Triple Cable Clamp, Trefoil Cable Clamp, High-Voltage Cable Cleat, Three-Core Cable Cleat
Technical Specifications
- Cable Capacity: 3 cables with 118–150 mm outside diameter
- Cable Formation: Triangular trefoil arrangement
- Material: Glass-fibre reinforced polyamide
- Mechanical Short-Circuit Resistance: 27,500 N
- Operating Temperature: -40°C to 120°C
- Flame Rating: UL94 self-extinguishing
- Environmental Properties: Halogen-free, UV-resistant and corrosion-resistant
- Mounting Hole Diameter: 15 mm
- Recommended Mounting Torque: 8 N·m
- Colour: Black
- Product Code: 25006
- Dimensions (H x L x W): 110mm x 400mm x 110mm
- Weight: 3.32 kg
Key Features
- Secures three large single-core or multicore cables in trefoil formation
- Suitable for low-, medium- and high-voltage cable installations
- Designed to resist electromechanical forces during short-circuit conditions
- Glass-fibre reinforced polyamide construction provides high mechanical strength
- Resistant to oils, UV, ozone, salt, moisture, acids and aggressive chemicals
- Stackable design for multi-layer cable installations
- Non-magnetic and non-conductive construction
- Additional mounting hole supports stud-bolt or regular-bolt installation
- Available pre-mounted with tailor-made fastening hardware options
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrical contractor in accordance with the manufacturer's instructions, the cable manufacturer's requirements and applicable electrical installation regulations. Cable cleat spacing must be selected for the cable arrangement and prospective short-circuit forces.
Applications
- HV cable runs
- Medium-voltage cable runs
- Large LV cable runs
- Substation cable installations
- Industrial power distribution systems
- Cable tray and ladder installations using trefoil cable formation
Standards & Compliance
- AS/NZS 3000:2018 — relevant installation requirements for electrical cable arrangements and wiring systems
- DIN EN IEC 61914:2023 — manufacturer-declared testing standard for cable cleats and resistance to electromechanical forces
Environmental Benefits
- Polyamide construction is recyclable at end of service life
- Halogen-free material reduces halogen emissions in fire conditions
- Long service life and resistance to UV, corrosion and chemicals can reduce replacement waste
- Non-metallic construction avoids oxidation and corrosion-related material loss
Warranty Information
Lifetime warranty stated by Dutchclamp, subject to the manufacturer's warranty terms and correct installation.
Available Now
Available through Dutchclamp and authorised electrical distributors in Australia.
