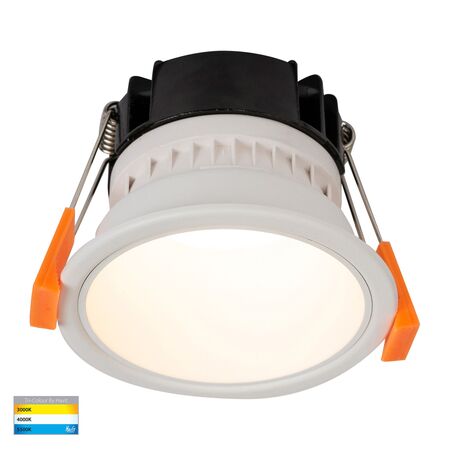

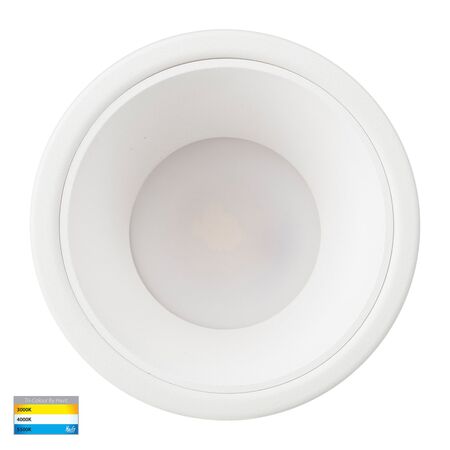

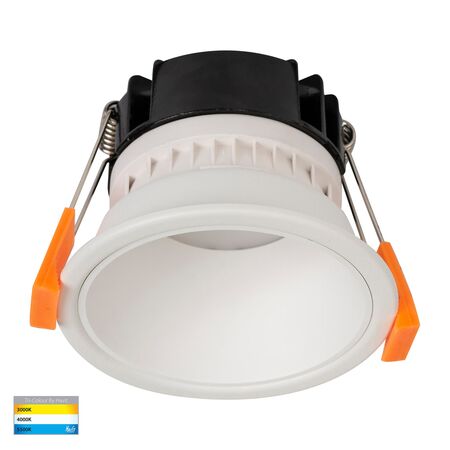

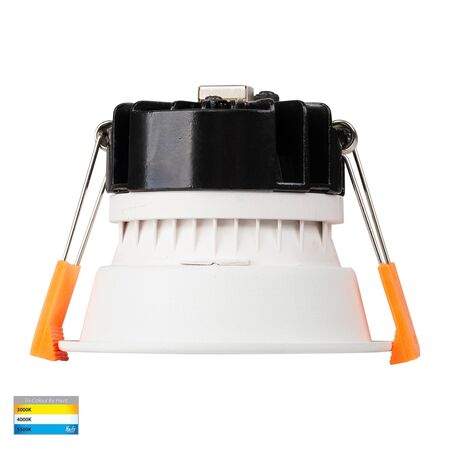

Tri Colour LED Downlight | 9W | 90° Beam Angle | IP54 Rated by Havit

SKU: HV5529T-WW
$49.40 List price: $64.40
+
Tri Colour LED downlight with 9W power and 90° beam angle—ideal for residential and commercial spaces. Built for energy efficiency, with IP54 protection and dimmable functionality.

Product Name/Title: Gleam White with White Insert Tri Colour Fixed Deep LED Downlight

Brand: Havit

SKU: HV5529T-WW

Alternatively Known As: Tri Colour LED Downlight, Recessed LED Downlight, Dimmable LED Downlight

Technical Specifications
  • Input Voltage: 240V AC
  • Power Wattage: 9W
  • Colour Temperature: 3000K, 4000K, 5500K
  • Lumens Output: 680lm, 795lm, 745lm
  • Material: Polycarbonate frame with aluminium heat sink
  • IP Rating: IP54
  • Beam Angle: 90°
  • Dimensions (H x L x W): 76mm x 76mm x 76mm
  • Weight: 0.5 kg
Key Features
  • Triac dimmable with a 90° beam angle.
  • IP54 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor location requiring recessed lighting
Standards & Compliance
  • Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
  • Energy-efficient design with built-in 9W LED reduces power consumption.
Warranty Information

3 years replacement warranty for items ordered after 01/01/22.

Available Now

The Gleam White with White Insert Tri Colour Fixed Deep LED Downlight is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.

Data Sheet (HV5529T-WX_Data_Sheet_JUN23.pdf, 728 Kb) [Download]

Installation Instructions (HV5529T-XXX_Installation_Instructions_JUN24.pdf, 259 Kb) [Download]


Lighting Requirement Calculator







This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
