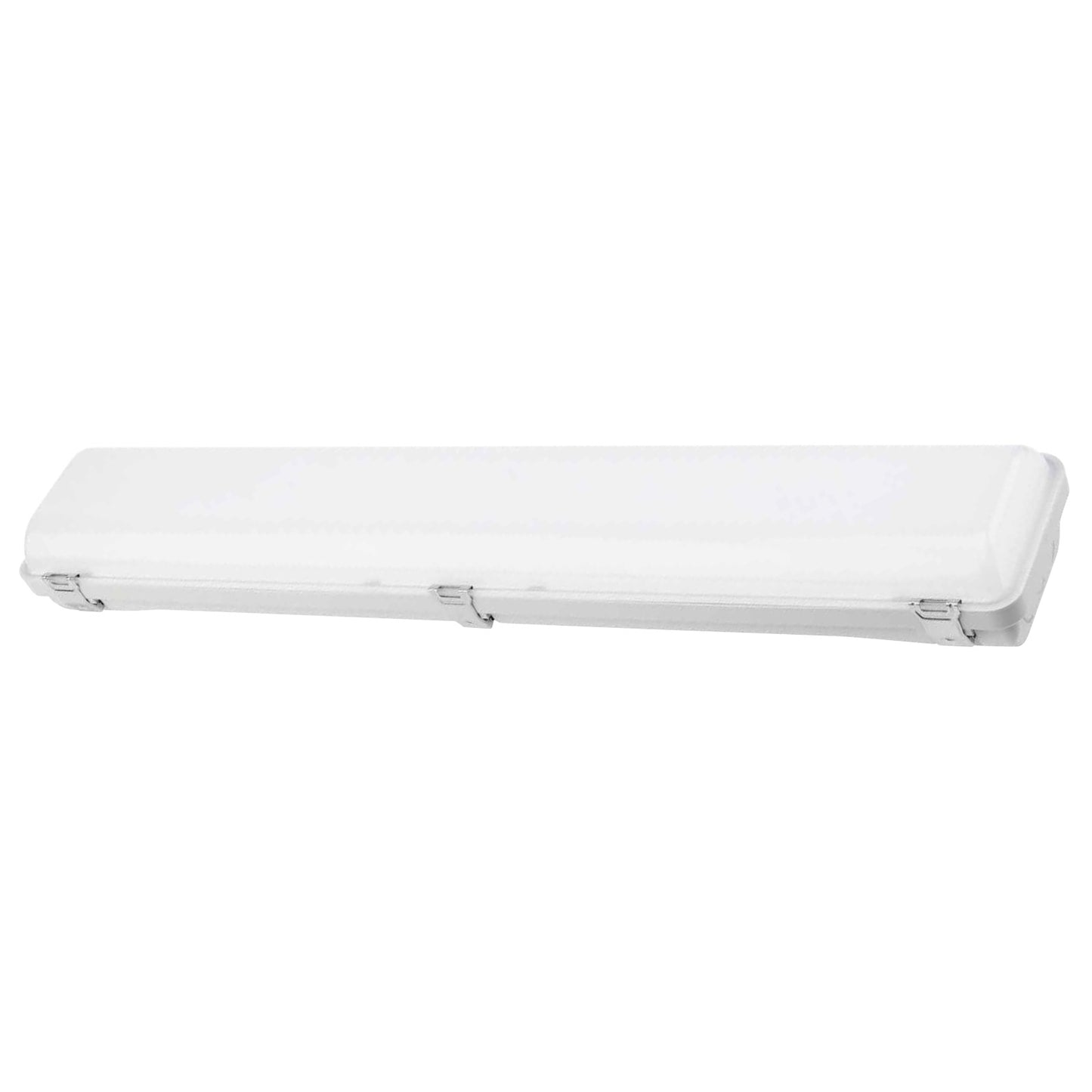

Tri-Proof Emergency CCT LED Batten | Selectable 12W/20W | IP65 Rated | 3000K/4000K/6000K | by Brilliant Lighting
The Tri-Proof Emergency CCT LED Batten is designed for versatile lighting solutions, offering selectable wattage of 12W or 20W and color temperatures of 3000K, 4000K, or 6000K. With an IP65 rating, it's perfect for commercial car parks, warehouses, and emergency lighting in schools. Built with a durable polycarbonate body, this batten ensures long-lasting performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tri-Proof Emergency CCT LED Batten | Selectable 12W/20W | IP65 Rated | 3000K/4000K/6000K | by Brilliant Lighting
Brand: Brilliant Lighting
SKU: 22754/08
Alternatively Known As: Tri-Proof LED Batten, Emergency LED Batten, Waterproof LED Batten, Industrial LED Batten, CCT LED Batten
Technical Specifications
- Power: Selectable 12W or 20W
- Input Voltage: 220-240V AC 50/60Hz
- Colour Temperature: Selectable 3000K / 4000K / 6000K
- Luminous Flux: Up to 2200lm (12W), 3600lm (20W)
- Emergency Mode Output: >300lm for 90 minutes
- IP Rating: IP65
- IK Rating: IK08
- Material: Polycarbonate body and diffuser
- Operating Temperature: -20°C to +40°C
- Power Factor: >0.9
- CRI: >80
- Beam Angle: 120°
- Dimmable: No
- Dimensions (H x L x W): 70mm x 600mm x 80mm
- Weight: 1.2 kg
Key Features
- Tri-proof design: waterproof, dustproof, and corrosion-resistant
- Selectable wattage: 12W or 20W
- Selectable colour temperature: 3000K, 4000K, 6000K
- Integrated emergency backup function
- High efficiency LED technology
- Impact resistant polycarbonate body and diffuser
- IP65 rated for harsh environments
- Long lifespan and low maintenance
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with local regulations and standards.
Applications
- Commercial car parks
- Warehouses
- Industrial facilities
- Public corridors
- Emergency lighting in offices and schools
- Outdoor covered areas
Standards & Compliance
- Complies with AS/NZS 2293 for emergency escape lighting and exit signs
- Complies with AS/NZS 60598 for safety and performance standards
Environmental Benefits
- Energy-efficient LED reduces power consumption and carbon footprint
- Long lifespan minimizes waste and replacement frequency
- Mercury-free and RoHS compliant
Warranty Information
3 year warranty covering manufacturing defects.
Available Now
The ENDURA 12W/20W 600MM Tri-Proof Emergency CCT LED Batten by Brilliant Lighting is available for immediate purchase. Ideal for commercial, industrial, and emergency lighting applications.
