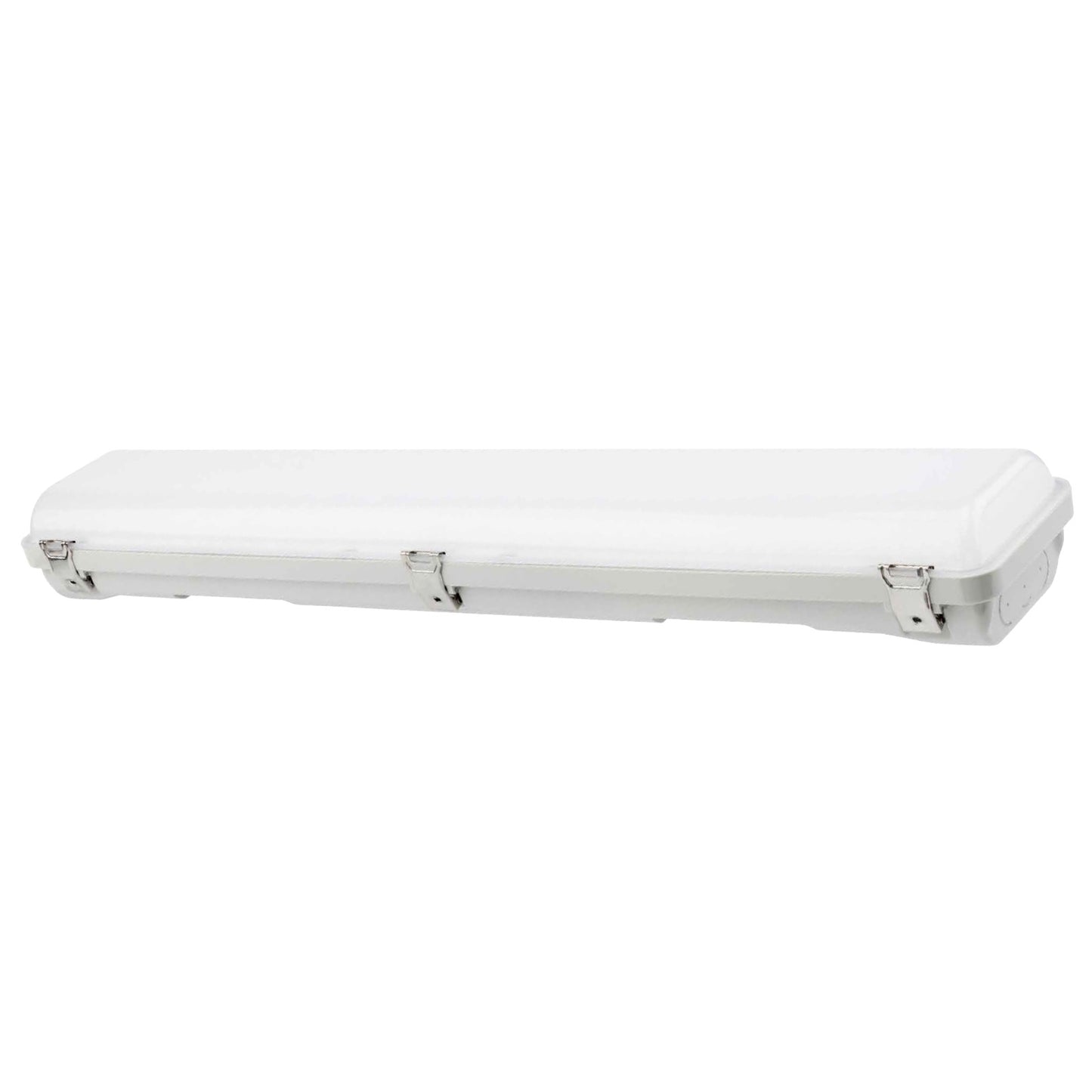

Tri-Proof Sensor CCT LED Batten | Selectable 12W/20W | IP65 Waterproof | Microwave Motion Sensor | by Brilliant Lighting
The Tri-Proof Sensor CCT LED Batten offers selectable wattage of 12W or 20W and adjustable color temperatures of 3000K, 4000K, or 6000K, making it perfect for various applications. With an IP65 rating for waterproof and dustproof performance, this energy-efficient lighting solution is ideal for car parks, warehouses, and outdoor covered areas, ensuring durability and long-lasting use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tri-Proof Sensor CCT LED Batten | Selectable 12W/20W | IP65 Waterproof | Microwave Motion Sensor | by Brilliant Lighting
Brand: Brilliant Lighting
SKU: 22753/08
Alternatively Known As: Tri-Proof LED Batten, Sensor LED Batten, Waterproof LED Batten, Motion Sensor Batten Light, CCT LED Batten
Technical Specifications
- Power: Selectable 12W or 20W
- Input Voltage: 220-240V AC 50/60Hz
- Colour Temperature: Selectable 3000K / 4000K / 6000K
- Luminous Flux: 1200lm (12W), 2000lm (20W)
- IP Rating: IP65 (waterproof and dustproof)
- IK Rating: IK08 (impact resistant)
- Sensor Type: Microwave motion sensor
- Material: Polycarbonate body and diffuser
- Beam Angle: 120°
- Operating Temperature: -20°C to +40°C
- Power Factor: >0.9
- CRI: >80
- Rated Lifetime: 30,000 hours
- Dimensions (H x L x W): 70mm x 600mm x 80mm
- Weight: 1.2 kg
Key Features
- Tri-proof design: waterproof, dustproof, and corrosion-resistant
- Selectable wattage: 12W or 20W
- Selectable colour temperature: 3000K, 4000K, 6000K
- Integrated microwave motion sensor for energy savings
- High efficiency LED technology
- Long lifespan
- Impact resistant polycarbonate body and diffuser
- Easy surface mounting
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with local regulations and AS/NZS 3000 wiring rules.
Applications
- Car parks
- Warehouses
- Industrial facilities
- Commercial kitchens
- Outdoor covered areas
- Workshops
- Garages
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
- Energy-efficient LED reduces power consumption and carbon footprint
- Long lifespan minimizes waste and replacement frequency
- Mercury-free and RoHS compliant
Warranty Information
3 year replacement warranty.
Available Now
The ENDURA 12W/20W 600MM Tri-Proof Sensor CCT LED Batten by Brilliant Lighting is available for immediate purchase. Ideal for industrial, commercial, and covered outdoor applications requiring robust and energy-efficient lighting.
