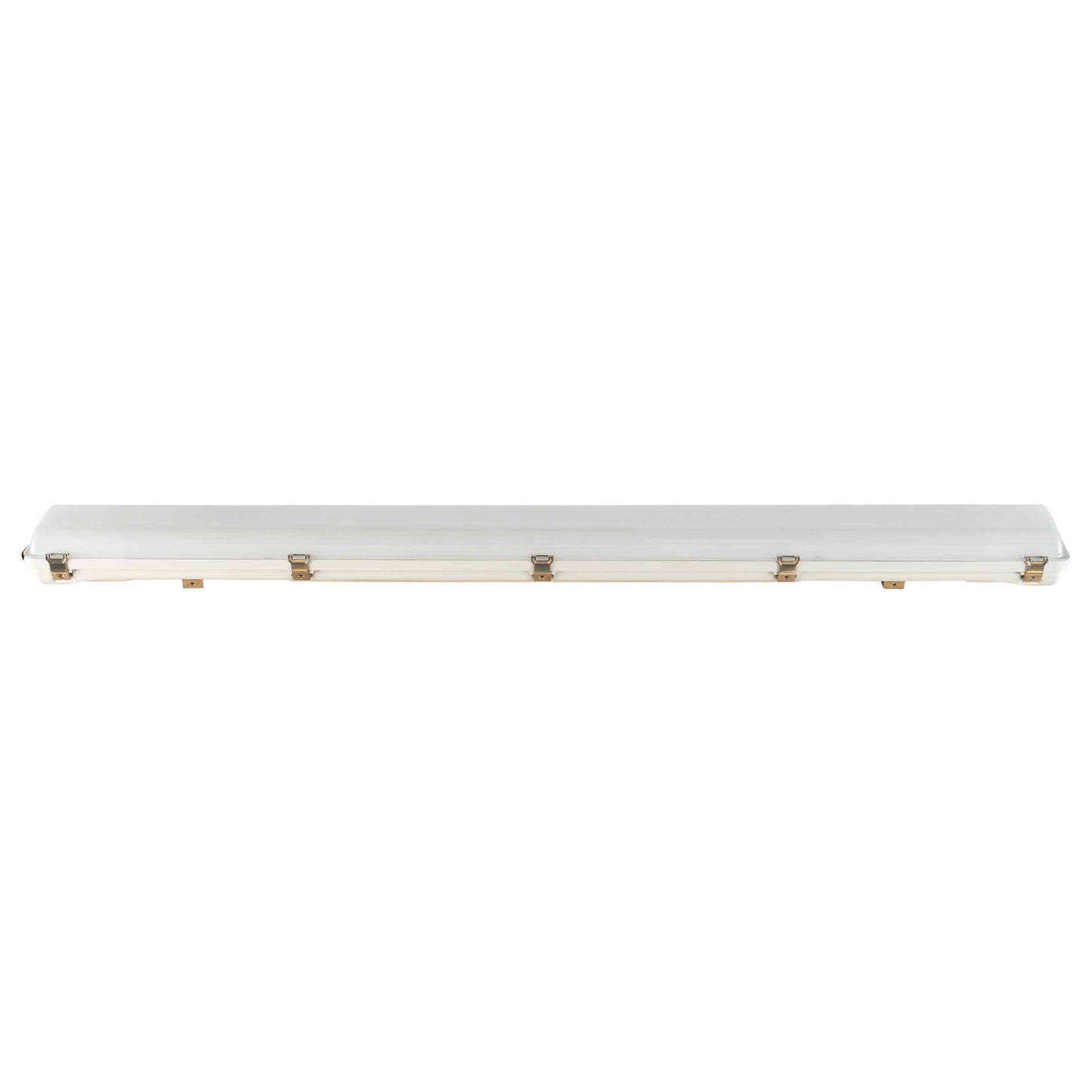

Tri-Proof Sensor CCT LED Batten | Selectable 22W/40W | IP65 Waterproof | Integrated Microwave Sensor | by Brilliant Lighting
The Tri-Proof Sensor CCT LED Batten is designed for versatile lighting solutions, offering selectable wattage of 22W or 40W and three color temperatures (3000K, 4000K, 6000K). With an IP65 rating for waterproof and dustproof performance, this batten is perfect for warehouses, car parks, and outdoor covered areas. Its integrated microwave motion sensor enhances energy efficiency, making it ideal for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tri-Proof Sensor CCT LED Batten | Selectable 22W/40W | IP65 Waterproof | Integrated Microwave Sensor | by Brilliant Lighting
Brand: Brilliant Lighting
SKU: 22755/08
Alternatively Known As: Tri-Proof LED Batten, Sensor LED Batten, Waterproof LED Batten, Industrial LED Batten, Motion Sensor Batten Light
Technical Specifications
- Power: Selectable 22W or 40W
- Input Voltage: 220-240V AC 50/60Hz
- Colour Temperature: Selectable 3000K / 4000K / 6000K
- Lumen Output: 2200lm (22W), 4000lm (40W)
- IP Rating: IP65 (waterproof and dustproof)
- IK Rating: IK08 (impact resistant)
- Sensor: Integrated microwave motion sensor
- Material: Polycarbonate body and diffuser
- Mounting: Surface or suspension
- Operating Temperature: -20°C to +40°C
- Power Factor: >0.9
- CRI: >80
- Rated Lifetime: 30,000 hours
- Dimensions (H x L x W): 75mm x 1200mm x 90mm
- Weight: 2.2 kg
Key Features
- Selectable wattage: 22W or 40W
- Tri-proof: waterproof, dustproof, and corrosion-resistant (IP65)
- Integrated microwave motion sensor for energy savings
- Selectable colour temperature: 3000K, 4000K, 6000K
- High lumen output for bright illumination
- Impact-resistant polycarbonate body (IK08)
- Long lifespan LED technology
- Easy surface or suspension mounting
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with local regulations and standards.
Applications
- Warehouses
- Car parks
- Industrial facilities
- Commercial kitchens
- Workshops
- Garages
- Outdoor covered areas
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment.
Environmental Benefits
- Energy-efficient LED reduces power consumption and carbon footprint.
- Long lifespan minimizes waste and replacement frequency.
- Mercury-free and RoHS compliant.
Warranty Information
3 year replacement warranty.
Available Now
The ENDURA 22W/40W 1200MM Tri-Proof Sensor CCT LED Batten by Brilliant Lighting is available for immediate purchase. Ideal for industrial, commercial, and outdoor covered applications.
