Tri-Wattage LED Floodlight 20/30/50W | IP66 Rated | 270° Adjustable Bracket by Lawell Lightning

BRAND: Lawel Lighting
SKU: TLFL235WTC
$67.00 List price: $87.30
+ −
30 Days Return Delivery Options
Tri-wattage LED floodlight with 20/30/50W options and IP66 rating—ideal for industrial and commercial exteriors. Built for durability, with a 270° adjustable bracket and high efficiency at 130 lm/W.

Product Name/Title: 20/30/50w Tri-Wattage Floodlight

Brand: Lawell Lightning

SKU: TLFL235WTC

Alternatively Known As: ['LED floodlight', 'Outdoor floodlight', 'High bay LED light', 'Industrial floodlight', 'Commercial LED floodlight', 'Exterior LED floodlight']

Technical Specifications
  • Input Voltage: 240V

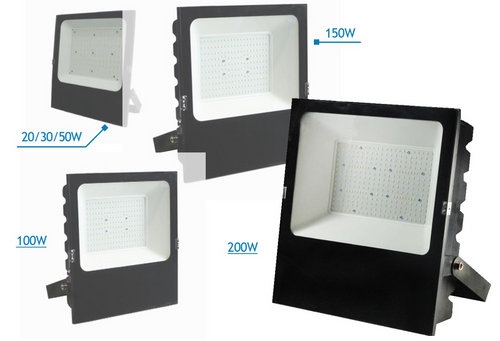

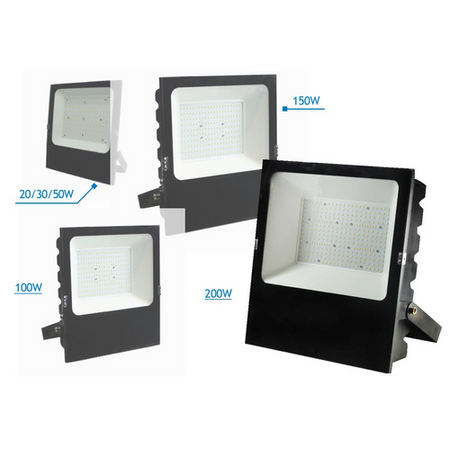

  • Wattage Options: 20W, 30W, 50W, 100W, 150W, 200W
  • Lumen Output: up to 10,000 lm (for 50W model)
  • Beam Angle: 120°
  • Colour Temperature: 4000K / 5000K / 6500K
  • Housing: Aluminium, powder coated black
  • IP Rating: IP66
  • Bracket: 270˚ adjustable
  • Rated Lifetime: 50,000 hours
  • Efficiency: 130 lm/W

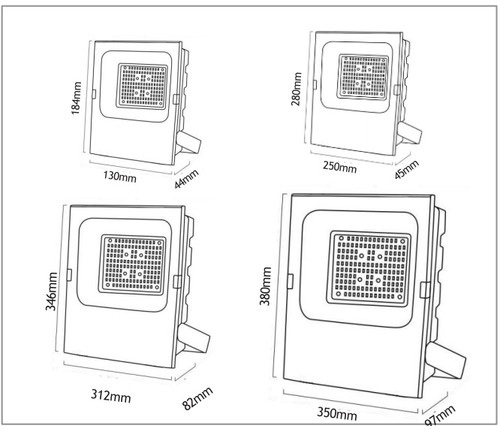

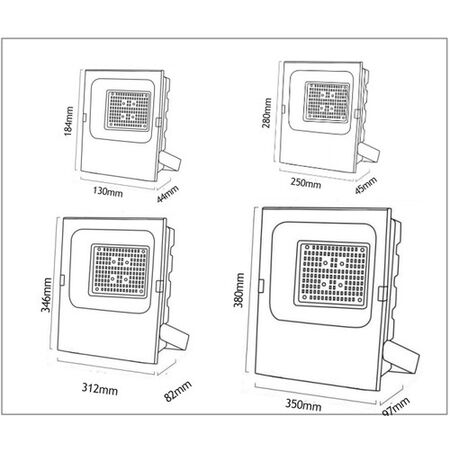

  • Dimensions (H x L x W): 130mm x 44mm x 184mm
  • Weight: 1.8 kg
Key Features
  • Aluminium housing powder coated black for durability
  • IP66 rated for superior weather resistance
  • 50,000 hours rated lifetime
  • High efficiency at 130 lumens per watt
  • 270˚ adjustable rotate bracket for flexible installation
  • Available in multiple wattages: 20W, 30W, 50W, 100W, 150W, 200W
  • Multiple colour temperatures: 4000K, 5000K, 6500K
  • 5 year warranty
Professional Installation Requirements
  • Installation by a licensed electrician is required to ensure compliance with Australian electrical safety standards.
Applications
  • Industrial warehouses
  • Sports arenas
  • Parking lots
  • Building facades
  • Large outdoor spaces
  • Commercial exteriors
Standards & Compliance
  • Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
  • High energy efficiency reduces electricity consumption
  • Long lifespan minimizes waste and replacement frequency
  • LED technology contains no hazardous materials
Warranty Information

5 year warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for illuminating large outdoor, industrial, and commercial spaces with reliable, high-powered LED lighting.

FL235%20FL100%20FL150%20FL200%20Datasheet.pdf (FL235_FL100_FL150_FL200_Datasheet.pdf, 353 Kb) [Download]

FL100%20ies.pdf (FL100_ies.pdf, 185 Kb) [Download]

FL150%20ies.pdf (FL150_ies.pdf, 186 Kb) [Download]

FL200%20ies.pdf (FL200_ies.pdf, 186 Kb) [Download]

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
