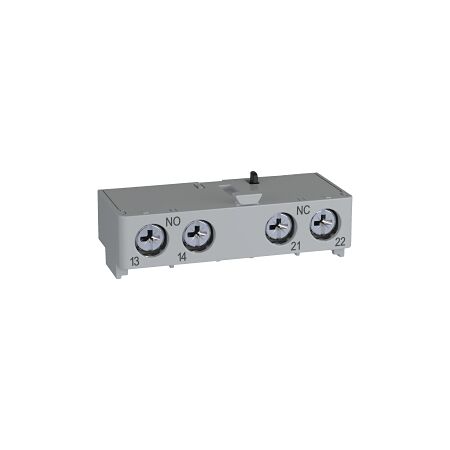

Trip Contact 1NO 1NC | 250V Insulation | Front Mount by NHP
Trip contact with 1NO and 1NC configuration and 250V insulation—ideal for motor protection and control systems. Built for industrial and commercial use, with front mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of NO contacts: 1
- Number of NC contacts: 1
- Rated insulation voltage: 250 V
- Rated operation current at 40°C: 5 A
- Rated operation current at AC 15, 24 V: 4 A
- Rated operation current at AC 15, 120 V: 3 A
- Rated operation current at AC 15, 240 V: 1.5 A
- Rated operation current at DC 13, 24 V: 1.2 A
- Rated operation current at DC 13, 125 V: 0.22 A
- Rated operation current at DC 13, 250 V: 0.11 A
- Mounting method: Front fastening
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact for versatile applications.
- Rated insulation voltage of 250 V for reliable performance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection and control systems
- Commercial: Equipment requiring auxiliary contacts
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of equipment failure.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140MT Trip Contact is available now for immediate purchase, ideal for motor protection and control applications.
