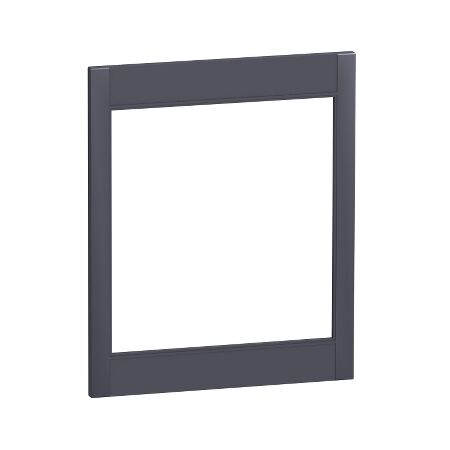

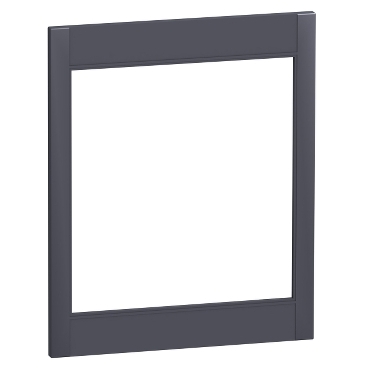

TRIP Unit Access Escutcheon FO | IP30 Protection | Durable Plastic | Easy Installation | by Clipsal
The TRIP Unit Access Escutcheon FO is designed for ComPact NSX100/160/250 circuit breakers, providing secure access to the trip unit toggle. With an IP30 protection rating, this durable plastic escutcheon is perfect for electrical switchboards and distribution panels, ensuring safety and reliability in industrial and commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TRIP Unit Access Escutcheon FO | IP30 Protection | Durable Plastic | Easy Installation | by Clipsal
Brand: Clipsal
SKU: SCHLV429526
Alternatively Known As: Trip unit escutcheon, breaker escutcheon, NSX100/160/250 escutcheon, circuit breaker access cover, SCHLV429526
Technical Specifications
- Compatible with: ComPact NSX100/160/250 fixed circuit breakers
- Protection rating: IP30
- Material: High-quality plastic
- Function: Escutcheon for toggle with trip unit access
- Dimensions (H x L x W): 120mm x 10mm x 80mm
- Weight: 0.25 kg
Key Features
- Provides access to trip unit toggle
- Designed for fixed ComPact NSX100/160/250 circuit breakers
- IP30 protection rating for dust and limited ingress
- Durable construction for long-term use
- Easy installation and secure fit
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with Australian standards and optimal safety.
Applications
- Electrical switchboards
- Distribution panels
- Industrial and commercial electrical installations
- Protection of circuit breakers with trip unit access
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances safety and reliability, reducing the risk of electrical faults and associated waste.
- Durable materials extend product lifespan, minimizing replacement frequency.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TRIP Unit Access Escutcheon FO SCHLV429526 is available for immediate purchase. Ideal for use in electrical switchboards and distribution panels requiring secure trip unit access.
