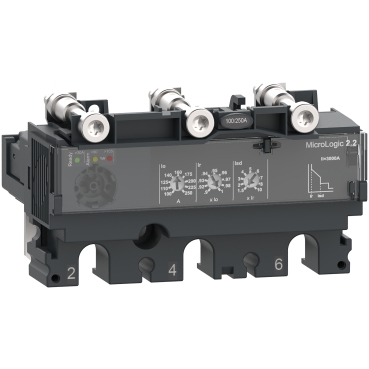

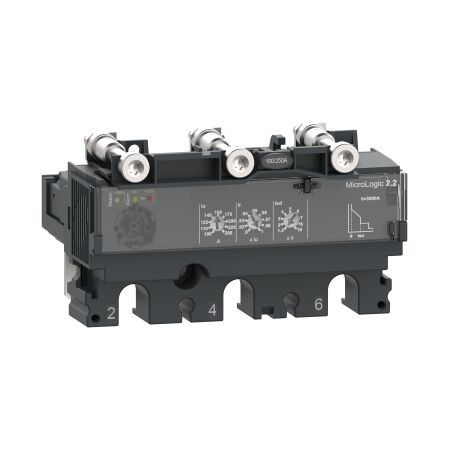

TRIP UNIT NSX100 AC 3P3D 100A | MicroLogic 2.2 Protection | 3 Poles | by Clipsal
The TRIP UNIT NSX100 AC 3P3D 100A is designed for advanced electrical protection in industrial and commercial applications. Featuring the MicroLogic 2.2 electronic trip unit, it provides overload and short-circuit protection with a 100A rated current. Ideal for integration into ComPacT NSX systems, this unit ensures reliable performance and enhances system efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TRIP UNIT NSX100 AC 3P3D 100A | MicroLogic 2.2 Protection | 3 Poles | by Clipsal
Brand: Clipsal
SKU: SCHC1032D100
Alternatively Known As: NSX100 Trip Unit, MicroLogic 2.2 Trip Unit, Schneider NSX100 100A Trip, ComPacT NSX100 Trip Unit, SCHC1032D100
Technical Specifications
- Type: Electronic trip unit (MicroLogic 2.2)
- Rated current: 100A
- Poles: 3
- Protection: Overload and short-circuit (basic electronic)
- Compatibility: ComPacT NSX100/160/250 circuit breakers
- Mounting: Plug-in to compatible circuit breaker
- Operating voltage: AC
- Trip class: Adjustable
- Dimensions (H x L x W): 130mm x 60mm x 75mm
- Weight: 0.7 kg
Key Features
- MicroLogic 2.2 electronic trip unit for advanced protection
- Compatible with ComPacT NSX100/160/250 circuit breakers
- 3 poles, 3D (three-phase, three-wire) configuration
- 100A rated current
- Provides basic electronic protection functions (overload, short-circuit)
- Easy integration into Schneider Electric ComPacT NSX systems
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with low voltage switchgear and protection devices.
Applications
- Industrial electrical distribution panels
- Commercial switchboards
- Protection of low voltage circuits in buildings
- Upgrading or retrofitting existing circuit breakers
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical system efficiency by providing precise protection and reducing unnecessary power loss.
- Supports system longevity, reducing waste from premature equipment failure.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TRIP UNIT NSX100 AC 3P3D 100A 2.2 (SCHC1032D100) is available for immediate purchase. Ideal for industrial and commercial electrical protection applications.
