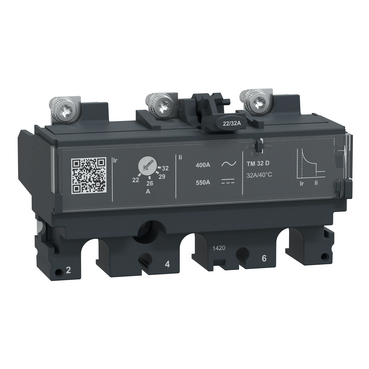

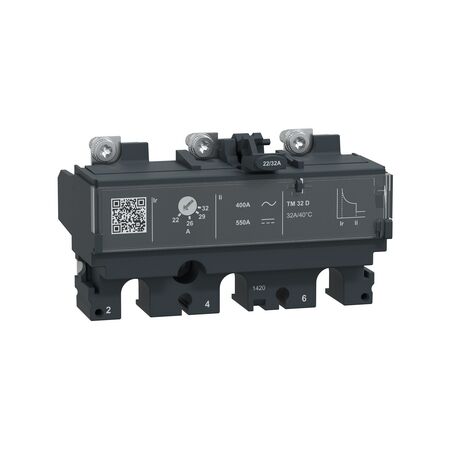

Trip Unit NSX100 AC 3P3D 32A TMD | Thermal-Magnetic Protection | 3-Pole Configuration | @Pack of 1 | by Clipsal
The Trip Unit NSX100 AC 3P3D 32A TMD is a thermal-magnetic trip unit designed for reliable circuit protection in industrial and commercial applications. With a rated current of 32A and a 3-pole configuration, it ensures fast response to overloads and short circuits. Ideal for use in electrical distribution panels and switchboards, this unit is compatible with NSX100 circuit breakers and features adjustable protection settings for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Trip Unit NSX100 AC 3P3D 32A TMD | Thermal-Magnetic Protection | 3-Pole Configuration | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC103TM032
Alternatively Known As: NSX100 Trip Unit, 32A TMD Trip Unit, Schneider Electric NSX100 3P3D, Thermal Magnetic Trip Unit 32A, NSX100 Circuit Breaker Trip Unit
Technical Specifications
- Type: Thermal-Magnetic Trip Unit
- Rated Current: 32A
- Poles: 3
- Protection: Overload (thermal) and short-circuit (magnetic)
- Compatibility: NSX100 circuit breakers
- Adjustable settings for thermal and magnetic tripping
- Operating Voltage: 690V AC max
- Frequency: 50/60Hz
- Dimensions (H x L x W): 130mm x 60mm x 75mm
- Weight: 0.7 kg
Key Features
- Thermal-magnetic trip unit for reliable circuit protection
- 3-pole, 3D (three-phase) configuration
- Rated current: 32A
- Compatible with NSX100 circuit breakers
- Adjustable thermal and magnetic protection settings
- Ensures fast response to overloads and short circuits
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Industrial electrical distribution panels
- Commercial switchboards
- Protection of low voltage circuits in buildings
- Suitable for use in factories, warehouses, and large commercial facilities
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Trip Unit NSX100 AC 3P3D 32A TMD (SCHC103TM032) is available for immediate purchase. Ideal for industrial and commercial electrical protection applications.
