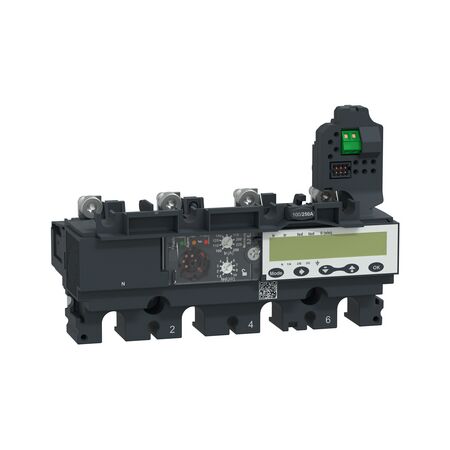

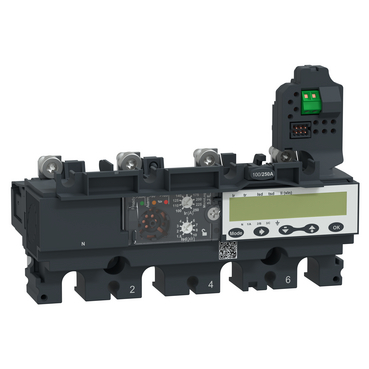

Trip Unit NSX250 AC 4P4D | 250A MicroLogic 5.2E | Overload & Short-Circuit Protection | Real-Time Energy Measurement | @Pack of 1 | by Clipsal
The Trip Unit NSX250 AC 4P4D is a 250A MicroLogic 5.2E electronic trip unit designed for precise protection in industrial and commercial applications. With advanced features like overload, short-circuit, and earth fault protection, it ensures reliable circuit management. Ideal for upgrading ComPacT NSX 250 circuit breakers, this unit also offers real-time energy measurement for enhanced efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Trip Unit NSX250 AC 4P4D | 250A MicroLogic 5.2E | Overload & Short-Circuit Protection | Real-Time Energy Measurement | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC2545E250
Alternatively Known As: NSX250 Trip Unit, MicroLogic 5.2E Trip Unit, 250A Electronic Trip Unit, ComPacT NSX250 Protection Module, Schneider NSX250 Trip Unit
Technical Specifications
- Type: MicroLogic 5.2 E electronic trip unit
- Rated current: 250A
- Poles: 4 (4D)
- Protection functions: Overload, short-circuit, earth fault
- Adjustable protection settings
- Real-time energy measurement
- Compatible with ComPacT NSX 250 circuit breakers
- Dimensions (H x L x W): 100mm x 80mm x 140mm
- Weight: 1.5 kg
Key Features
- MicroLogic 5.2 E electronic trip unit for precise protection
- Rated for 250A, suitable for 4-pole (4D) applications
- Advanced electronic protection: overload, short-circuit, earth fault
- Compatible with ComPacT NSX 250 circuit breakers
- Adjustable protection settings for flexibility
- Real-time monitoring and energy measurement capabilities
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with low voltage switchgear and circuit protection devices.
Applications
- Industrial electrical distribution panels
- Commercial switchboards
- Protection of low voltage circuits
- Upgrading or retrofitting ComPacT NSX 250 circuit breakers
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improved energy efficiency through precise circuit protection
- Reduces risk of electrical fires and equipment damage
- Supports energy monitoring for better resource management
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Trip Unit NSX250 AC 4P4D 250A 5.2E is available for immediate purchase. Ideal for industrial and commercial electrical protection and monitoring applications.
