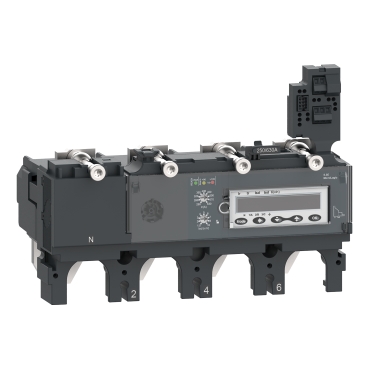

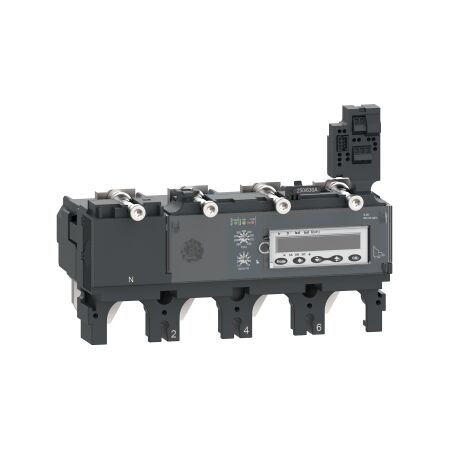

TRIP UNIT NSX400 AC 4P4D 400A | MicroLogic 5.3E | Integrated Energy Metering | by Clipsal
The TRIP UNIT NSX400 AC 4P4D 400A is designed for advanced protection in industrial and commercial applications. Featuring a MicroLogic 5.3E electronic trip unit, it offers overload, short-circuit, and earth fault protection, along with integrated energy metering for efficient management. Ideal for use in electrical distribution panels and switchboards, this unit ensures reliable performance and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TRIP UNIT NSX400 AC 4P4D 400A | MicroLogic 5.3E | Integrated Energy Metering | by Clipsal
Brand: Clipsal
SKU: SCHC4045E400
Alternatively Known As: NSX400 Trip Unit, MicroLogic 5.3E Trip Unit, 400A Electronic Trip Unit, ComPacT NSX400 Trip, Schneider NSX400 Trip Unit
Technical Specifications
- Rated current: 400A
- Poles: 4 (4D - 4 protected poles)
- Trip unit type: MicroLogic 5.3E electronic
- Protection functions: Overload, short-circuit, earth fault
- Energy metering: Integrated
- Compatible with: ComPacT NSX400/630 circuit breakers
- Mounting: Plug-in/withdrawable
- Operating voltage: 690V AC max
- Dimensions (H x L x W): 161mm x 103mm x 140mm
- Weight: 2.5 kg
Key Features
- MicroLogic 5.3E electronic trip unit for advanced protection and energy metering
- 4 pole, 4D (4-pole, 4 protected poles) configuration
- 400A rated current for high-capacity applications
- ComPacT NSX400/630 compatibility
- Integrated energy metering for monitoring and optimization
- Electronic basic protections: overload, short-circuit, earth fault
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with low voltage switchgear and protection devices.
Applications
- Industrial electrical distribution panels
- Commercial switchboards
- Energy management systems
- Protection of low voltage circuits in large buildings
Standards & Compliance
- Complies with AS/NZS 60947.2 for circuit breakers and AS/NZS 3000 for electrical installations
Environmental Benefits
- Integrated energy metering supports efficient energy management and reduced consumption
- Electronic protection reduces risk of electrical faults and associated waste
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal TRIP UNIT NSX400 AC 4P4D 400A 5.3E (SCHC4045E400) is available for immediate purchase. Ideal for industrial and commercial switchboard applications requiring advanced protection and energy monitoring.
