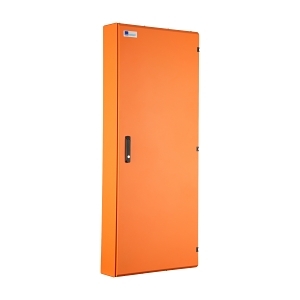

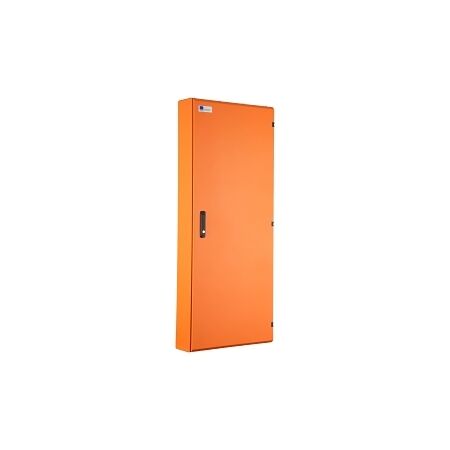

Triple Metered Panelboard 36/60/12 Way | 250A | IP42 Rated | Orange by NHP

BRAND: NHP
SKU: CPLMT366012M250O
$10,674.40 List price: $14,174.20
Free pick up (over 25 kg)
For delivery quote message
30 Days Return Delivery Options
Triple metered panelboard with 36/60/12 way configuration and 250A capacity—ideal for industrial facilities and large buildings. Built for robust electrical distribution, with IP42 protection and durable steel housing.

Product Name/Title: NHP Concept Plus Panelboard DIN-T Triple Metered Split 36/60/12 Way 250A MSW 9-1944mm Orange

Brand: NHP

SKU: CPLMT366012M250O

Alternatively Known As: NHP Triple Metered Panelboard, Concept Plus Distribution Board

Technical Specifications
  • Rated Current: 250 A
  • Number of Outgoing Ways: 108
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 4 kV
  • Rated Insulation Voltage: 500 V
  • Number of Poles (Main Switch): 3
  • Neutral Terminal Block: Yes
  • Earthing Terminal Block: Yes
  • Spare DIN Equipment Space Poles: 21
  • Material Housing: Steel
  • Material Thickness: 1.6 mm
  • Degree of Protection: IP42
  • Impact Strength: IK10
  • Mounting Method: Surface mounted (plaster)
  • Dimensions (H x L x W): 1944mm x 200mm x 600mm
  • Weight: 50 kg
Key Features
  • Triple metered panelboard with integrated energy metering function.
  • Surface mounted design with a durable steel housing.
  • IP42 rated for protection against solid objects and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is required for safety and compliance.
Applications
  • Commercial: Industrial facilities, large buildings, and infrastructure projects
  • General: Any location requiring a robust electrical distribution solution
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Efficient energy metering helps in monitoring and reducing energy consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard is available now for immediate purchase, ideal for commercial and industrial applications.

CPLMT366012M250O-AU-Triple-Metered-Panelboard---Orange-Datasheet.pdf (CPLMT366012M250O-AU-Triple-Metered-Panelboard---Orange-Datasheet.pdf, 355 Kb) [Download]
