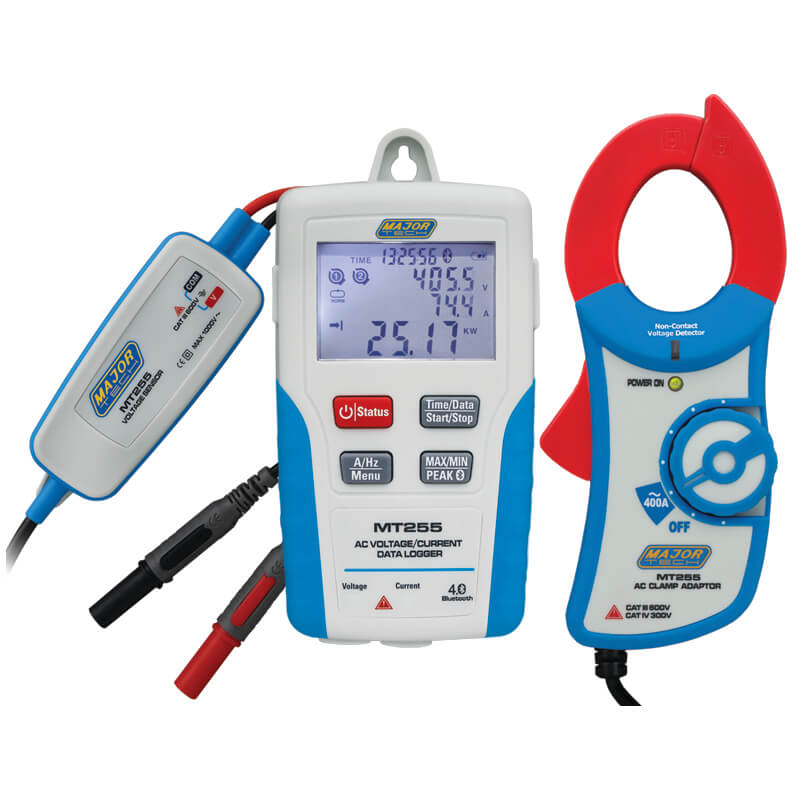

TRMS AC Power Data Logger | 0.1A to 400A Range | Bluetooth Connectivity & Flash Memory | MT255 by Majortech
Monitor electrical parameters with the TRMS AC Power Data Logger, featuring a 0.1A to 400A current range and Bluetooth connectivity for real-time data display. Ideal for technicians and electricians, it offers built-in flash memory for data retention and supports long-term logging in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TRMS AC Power Data Logger | 0.1A to 400A Range | Bluetooth Connectivity & Flash Memory | MT255 by Majortech
Brand: Majortech
SKU: MT255
Alternatively Known As: AC Power Logger, TRMS Data Logger, Bluetooth Power Meter, Electrical Parameter Logger, MT255 Data Logger
Technical Specifications
- AC Current Range (RMS): 0.1A to 400.0A, Accuracy: ±(3.5% +3)
- Active Power Range: 0.001kW to 400.0kW, Accuracy: ±(4% +1)
- Apparent Power Range: 0.001kVA to 400.0kVA, Accuracy: ±(4% +1)
- Power Factor Range: -1.00 to 1.00, Accuracy: ±(3° +2)
- Active Energy Range: 0.001kWh to 9999kWh, Accuracy: ±(4% +3)
- Bluetooth connectivity for real-time data display
- Built-in flash memory for data retention during power loss
- Compatible with Meter-X mobile app and PC software
- Dimensions (H x L x W): 70mm x 30mm x 120mm
- Weight: 0.5 kg
Key Features
- Bluetooth integration for real-time data display via Meter-X mobile app (Android and iOS)
- Built-in flash storage for data retention during power loss
- Measures RMS Voltage, RMS Current, Frequency (Hz), Active Power (kW), Apparent Power (kVA), Active Energy (kWh), and Power Factor
- Three recording modes and two storage modes for flexible data logging
- Flashing LCD indicator for active recording status
- Detailed graphical analysis available through PC software
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure accurate measurements and compliance with electrical safety standards.
Applications
- Electrical maintenance and monitoring by technicians and electricians
- Contractors and consumers requiring accurate AC voltage and current monitoring
- Long-term electrical parameter logging in industrial, commercial, and residential environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient energy monitoring to reduce power wastage
- Supports proactive maintenance to extend equipment lifespan and reduce environmental impact
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech TRMS AC Power Data Logger MT255 is available now for immediate purchase. Ideal for electrical maintenance, energy monitoring, and long-term data logging applications.
