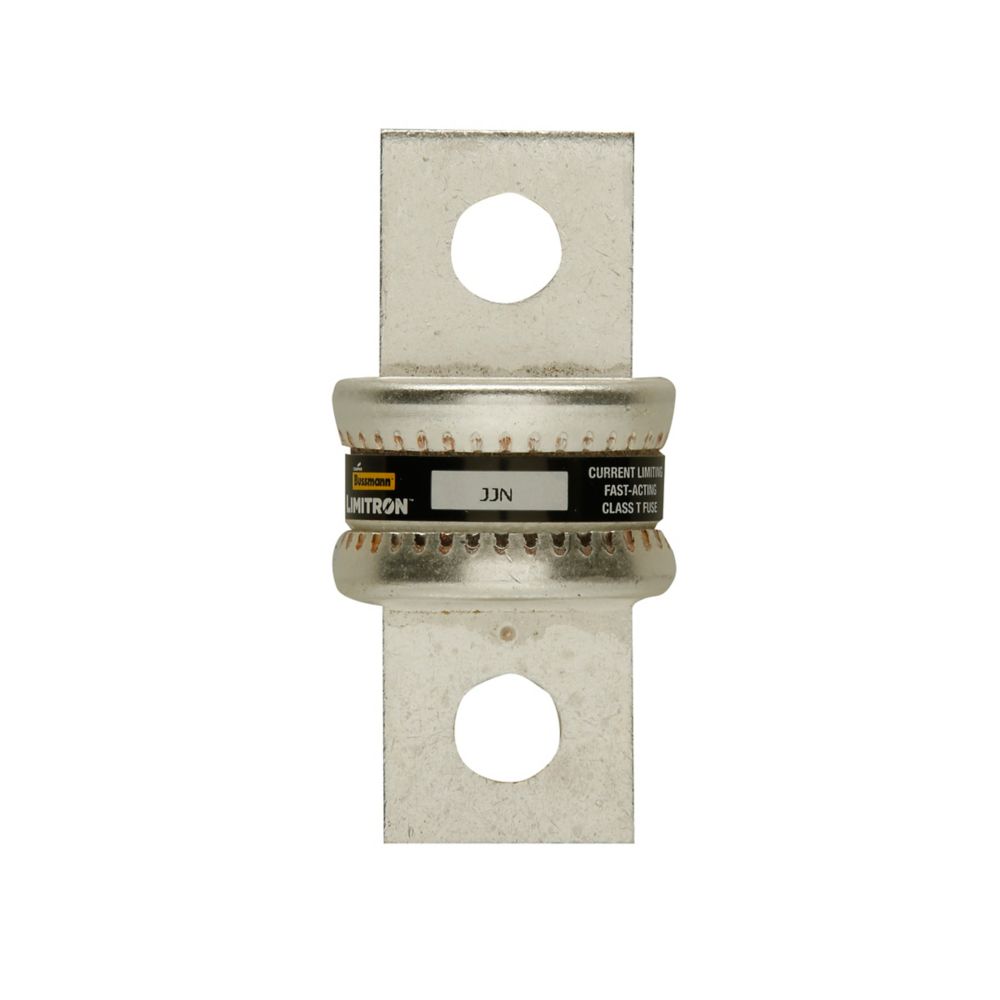

TRON Fast Acting Fuse | 225A Amperage Rating | Class T Fuse | High Interrupt Rating | @Each by Eaton
The TRON Fast Acting Fuse is designed for superior circuit protection with a 225A amperage rating and high interrupt ratings of 200 kAIC at 300 Vac. Ideal for VFD line protection and industrial electrical circuits, this Class T fuse ensures reliable performance in critical applications. Its bolted blade connection type enhances installation stability, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TRON Fast Acting Fuse | 225A Amperage Rating | Class T Fuse | High Interrupt Rating | @Each by Eaton
Brand: Eaton
SKU: JJN-225
Alternatively Known As: JJN-225 Fuse, Eaton Class T Fuse, Fast Acting Fuse 225A, TRON Fuse
Technical Specifications
- Amperage Rating: 225 A
- Voltage Rating: 300 Vac, 160 Vdc
- Interrupt Rating: 200 kAIC at 300 Vac, 20 kAIC at 160 Vdc
- Fuse Class: Class T
- Connection Type: Bolted blade end x bolted blade end
- Fuse Indicator: Non-indicating
- Packaging Type: Standard
- Dimensions (H x L x W): 25mm x 70mm x 25mm
- Weight: 0.11 kg
Key Features
- Current-limiting fuse for enhanced circuit protection
- Class T fuse with 225 A amperage rating
- Bolted blade end x bolted blade end connection
- Non-indicating fuse type
- High interrupt rating: 200 kAIC at 300 Vac, 20 kAIC at 160 Vdc
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse application.
Applications
- VFD line protection
- Current-limiting applications
- Industrial electrical circuits requiring Class T fuses
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Not applicable
Available Now
The Eaton TRON Fast Acting Fuse JJN-225 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
