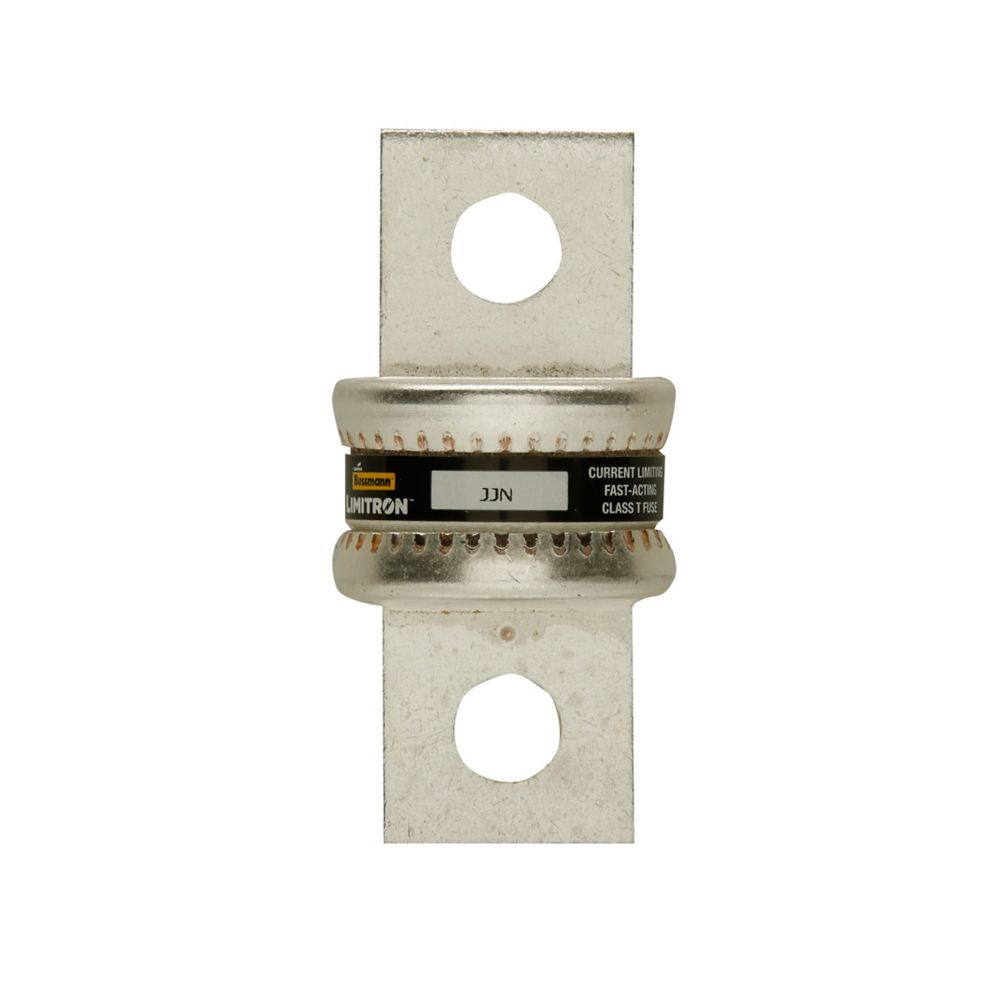

TRON Fast Acting Fuse Class T | 300 A Amperage Rating | High Interrupt Rating | Non-Indicating | @Each by Eaton
The TRON Fast Acting Fuse Class T is designed for reliable protection in industrial electrical systems, featuring a 300 A amperage rating and a high interrupt rating of 200 kAIC at 300 V AC. Ideal for VFD line protection and current-limiting applications, this non-indicating fuse ensures enhanced safety and compliance with electrical standards, making it a perfect choice for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TRON Fast Acting Fuse Class T | 300 A Amperage Rating | High Interrupt Rating | Non-Indicating | @Each by Eaton
Brand: Eaton
SKU: JJN-300
Alternatively Known As: Class T Fuse, Fast Acting Fuse, JJN-300 Fuse, Eaton JJN Fuse, VFD Protection Fuse
Technical Specifications
- Amperage Rating: 300 A
- Voltage Rating: 300 V AC, 160 V DC
- Interrupt Rating: 200 kAIC at 300 V AC, 20 kAIC at 160 V DC
- Connection Type: Bolted blade end x bolted blade end
- Fuse Indicator: Non-indicating
- Class: Class T
- Packaging Type: Standard
- Dimensions (H x L x W): 25mm x 70mm x 25mm
- Weight: 0.11 kg
Key Features
- Current-limiting fuse for enhanced protection
- 300 A amperage rating
- Bolted blade end x bolted blade end connection
- Non-indicating fuse type
- High interrupt rating: 200 kAIC at 300 V AC, 20 kAIC at 160 V DC
- Class T fuse for fast acting protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse application.
Applications
- VFD line protection
- Current-limiting applications
- Industrial electrical systems requiring Class T fuses
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Not applicable
Available Now
The Eaton TRON Fast Acting Fuse Class T JJN-300 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
