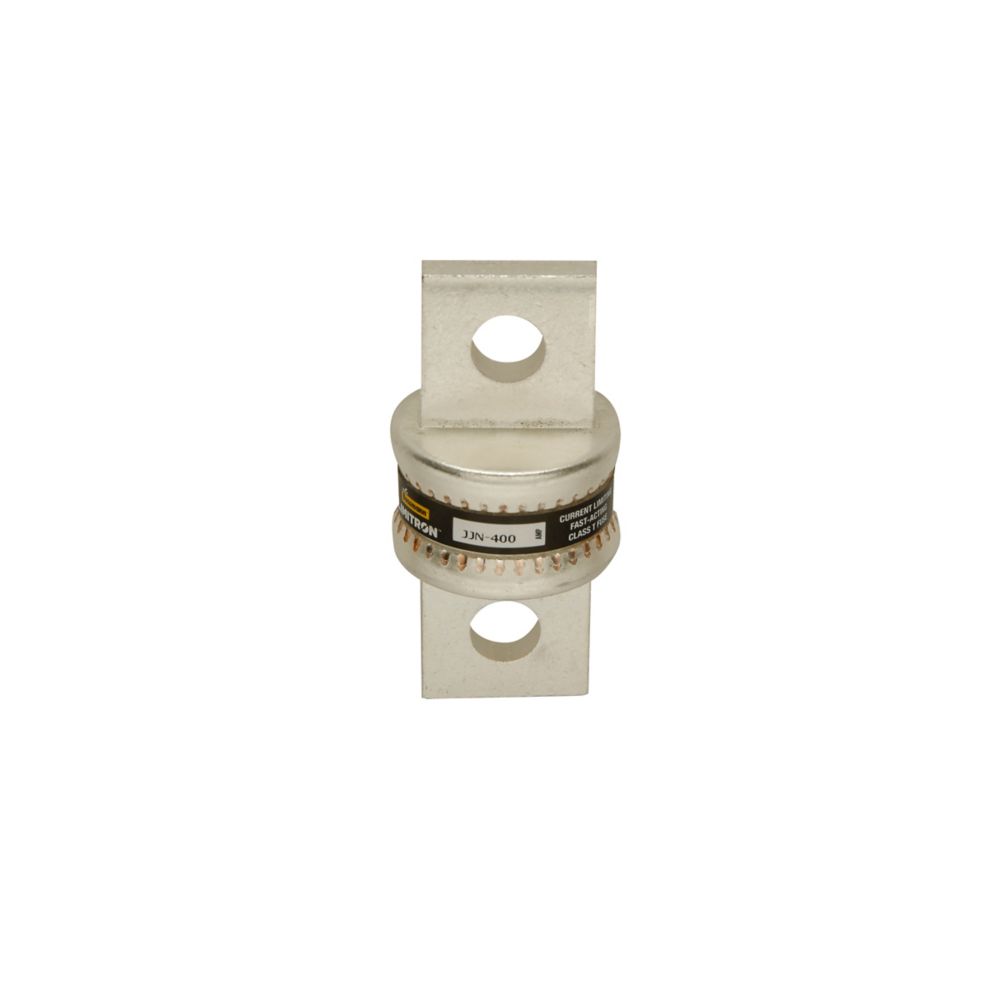

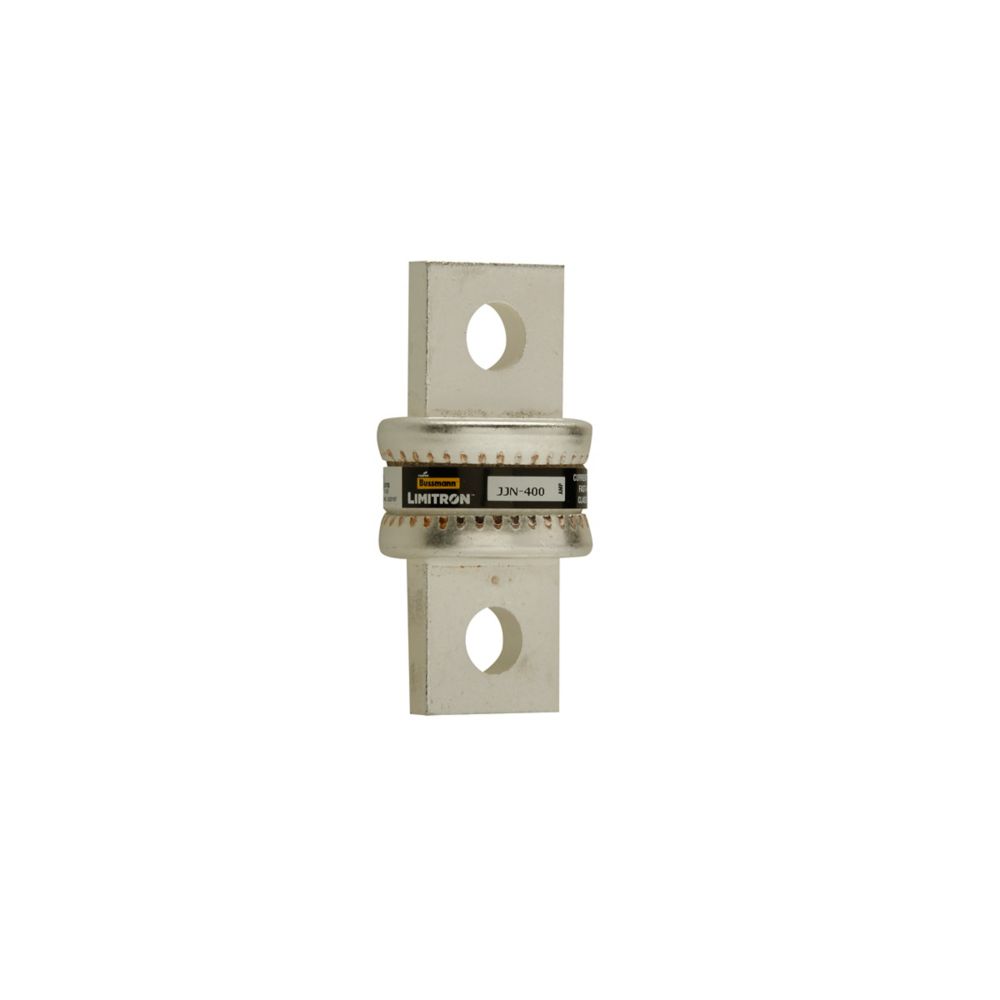

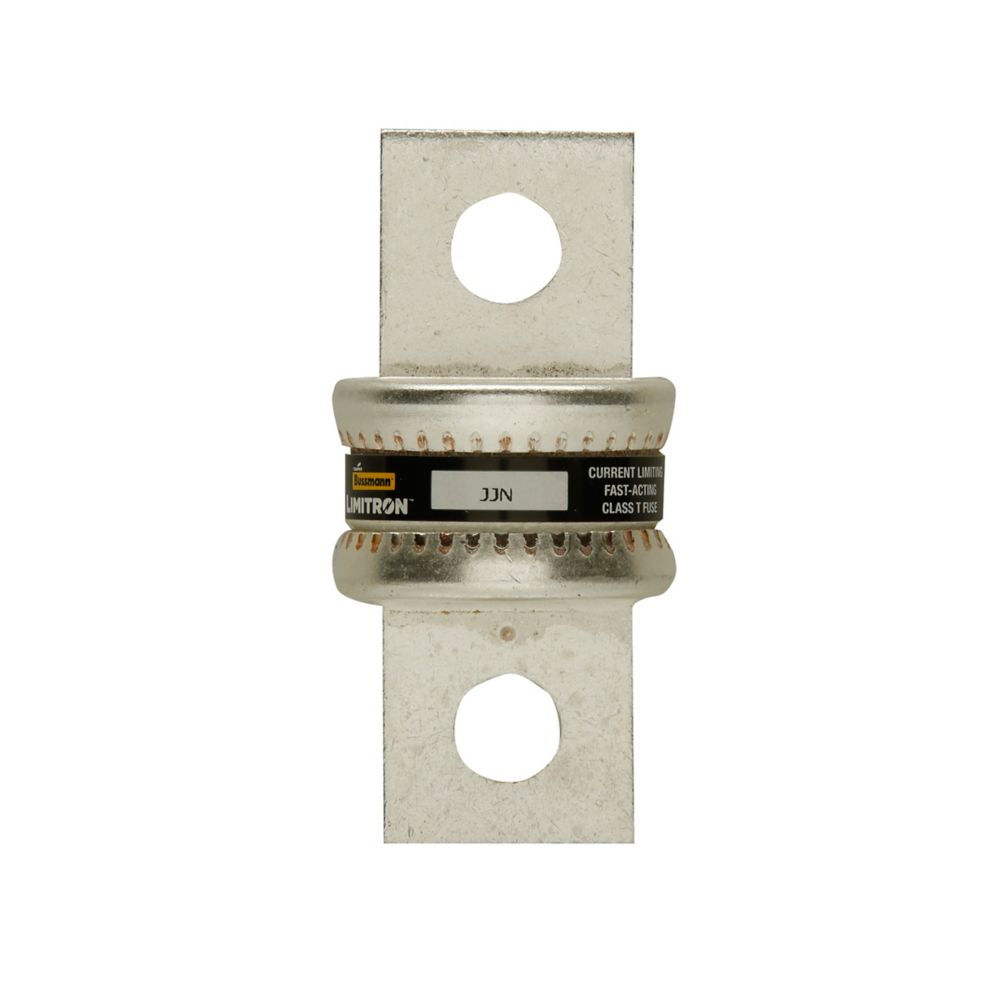

TRON Fast Acting Fuse Class T | 400A Amperage Rating | 20kAIC Interrupt Rating | Non-Indicating | @Each by Eaton
The TRON Fast Acting Fuse Class T is designed for superior circuit protection with a 400A amperage rating and high interrupt ratings of 20 kAIC at 160 Vdc and 200 kAIC at 300 Vac. Ideal for VFD line protection and industrial motor control circuits, this current-limiting fuse ensures safety and reliability in power distribution systems. Its bolted blade end connection type makes installation straightforward for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TRON Fast Acting Fuse Class T | 400A Amperage Rating | 20kAIC Interrupt Rating | Non-Indicating | @Each by Eaton
Brand: Eaton
SKU: JJN-400
Alternatively Known As: Class T Fuse, Fast Acting Fuse, JJN-400 Fuse, Eaton Bussmann JJN Fuse, VFD Protection Fuse
Technical Specifications
- Amperage Rating: 400 A
- Interrupt Rating: 20 kAIC at 160 Vdc, 200 kAIC at 300 Vac
- Voltage Rating: 300 Vac, 160 Vdc
- Connection Type: Bolted blade end x bolted blade end
- Fuse Indicator: Non-indicating
- Class: Class T
- Packaging Type: Standard
- Dimensions (H x L x W): 25mm x 70mm x 25mm
- Weight: 0.11 kg
Key Features
- Current-limiting fuse for enhanced circuit protection
- Class T fuse for fast-acting response
- Bolted blade end x bolted blade end connection
- Non-indicating fuse type
- High interrupt rating: 20 kAIC at 160 Vdc, 200 kAIC at 300 Vac
- Voltage rating: 300 Vac, 160 Vdc
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse application.
Applications
- VFD line protection
- Industrial motor control circuits
- Power distribution systems requiring fast-acting fuses
- Current-limiting applications in electrical panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Not applicable
Available Now
The Eaton TRON Fast Acting Fuse Class T JJN-400 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
