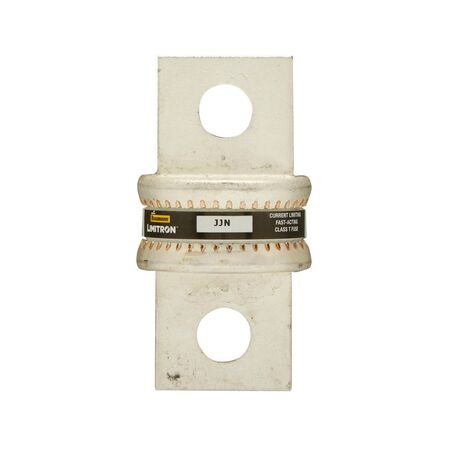

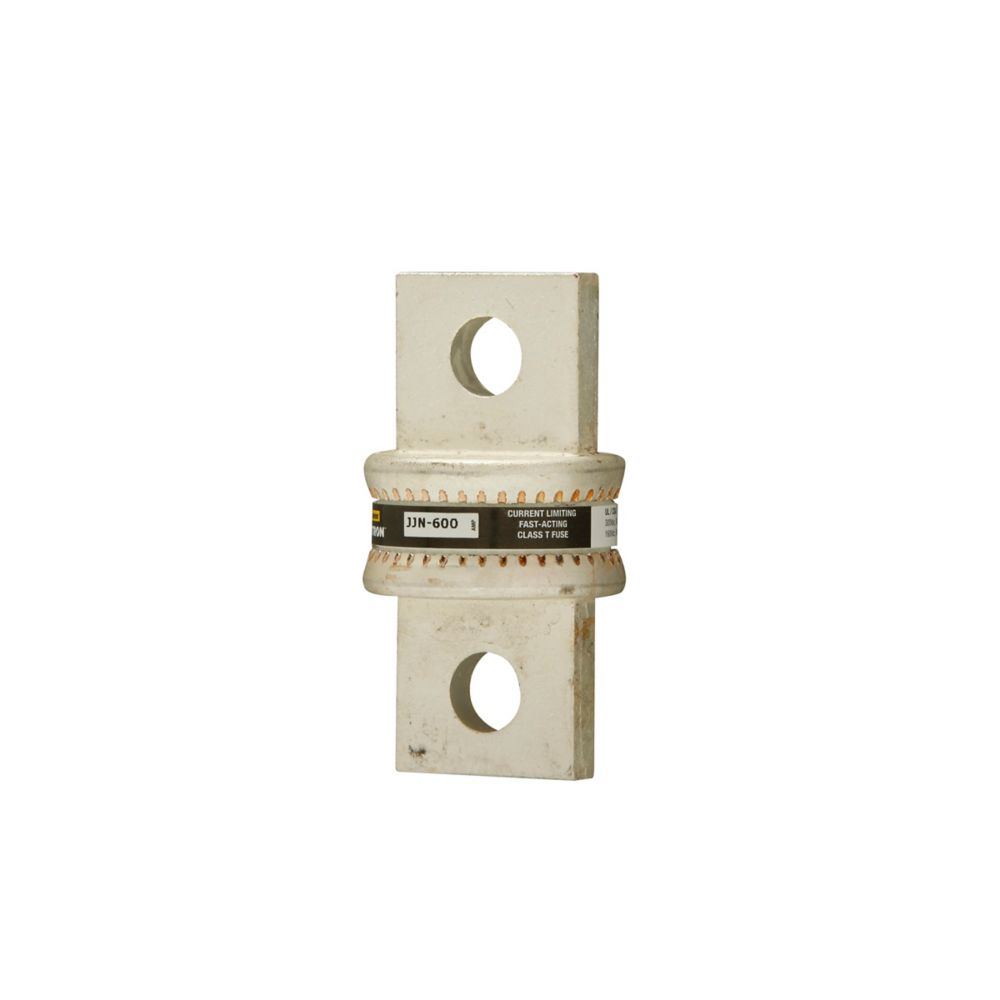

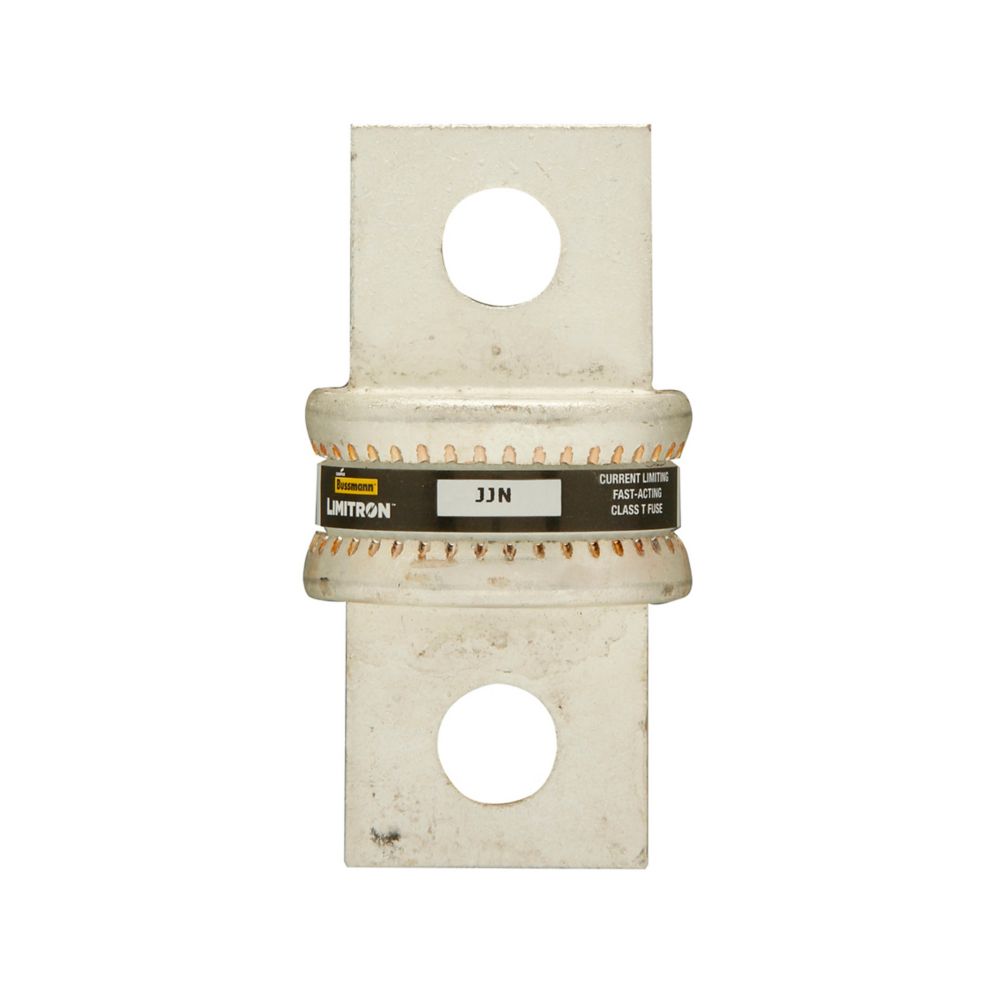

TRON Fast Acting Fuse Class T | 600 A Amperage Rating | High Interrupt Rating | Bolted Blade Connection | @Each by Eaton
The TRON Fast Acting Fuse Class T is designed for superior circuit protection with a 600 A amperage rating and high interrupt ratings of 20 kAIC at 160 Vdc and 200 kAIC at 300 Vac. Ideal for VFD line protection and industrial electrical systems, this current-limiting fuse ensures enhanced efficiency and safety in your applications. Professional installation is recommended to comply with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TRON Fast Acting Fuse Class T | 600 A Amperage Rating | High Interrupt Rating | Bolted Blade Connection | @Each by Eaton
Brand: Eaton
SKU: JJN-600
Alternatively Known As: Class T Fuse, Fast Acting Fuse, JJN-600 Fuse, Eaton Bussmann JJN Fuse
Technical Specifications
- Amperage Rating: 600 A
- Interrupt Rating: 20 kAIC at 160 Vdc, 200 kAIC at 300 Vac
- Voltage Rating: 300 Vac, 160 Vdc
- Connection Type: Bolted blade end x bolted blade end
- Fuse Indicator: Non-indicating
- Class: Class T
- Dimensions (H x L x W): 32mm x 78mm x 32mm
- Weight: 0.1 kg
Key Features
- Current-limiting fuse for enhanced circuit protection
- 600 A amperage rating
- Bolted blade end x bolted blade end connection
- Non-indicating fuse type
- High interrupt rating: 20 kAIC at 160 Vdc, 200 kAIC at 300 Vac
- Voltage rating: 300 Vac, 160 Vdc
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse application.
Applications
- VFD line protection
- Current-limiting applications
- Industrial electrical systems requiring Class T fuses
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Current-limiting design reduces energy loss and enhances system efficiency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Not applicable
Available Now
The Eaton TRON Fast Acting Fuse Class T JJN-600 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
