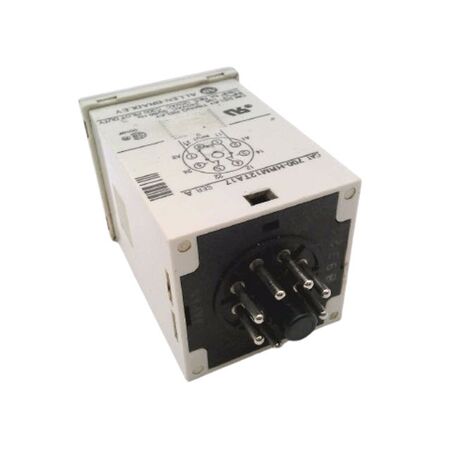

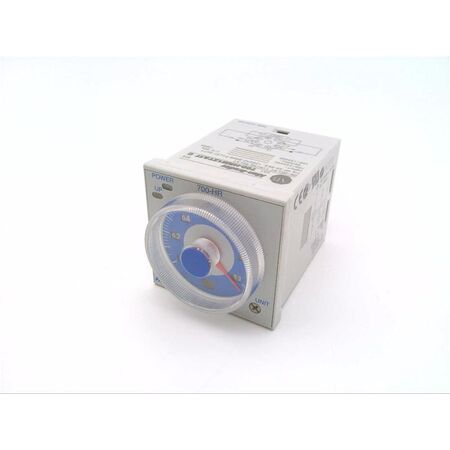

Tube Base Dial Timing Relay | On-Delay Function | 8 Pin Configuration | 100-240VAC | by Allen-Bradley
The Tube Base Dial Timing Relay is designed for precise timing control in industrial automation systems. With an on-delay function and an 8 pin configuration, it operates on a 100-240VAC power supply, making it ideal for manufacturing processes and electrical control panels. This relay features a timing range from 0.05 seconds to 300 hours, ensuring flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Model: 700HRM12TA17
- Type: Tube Base Dial Timing Relay
- Timing Function: On-delay
- Pin Configuration: 8 pin
- Operating Voltage: 100-240VAC
- Trigger: Power on
- Reset: Power off
- Contact Type: 2 pole double throw
- Timing Range: 0.05 seconds to 300 hours
- Dimensions (H x L x W): 60mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- On-delay timing relay with 8 pin tube base
- Operates on 100-240VAC power supply
- Trigger at power on and reset at power off
- 2 pole double throw contacts
- Timing range from 0.05 seconds to 300 hours
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring on-delay timing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by precise timing control in electrical systems
- Reduces unnecessary power consumption through accurate delay functions
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HRM12TA17 Tube Base Dial Timing Relay is available now for immediate purchase. Ideal for industrial and commercial electrical timing applications.
