Tube Base Relay 10A 2CO | 240VAC Coil | Pushbutton & LED by NHP
Tube base relay with 10A current and 240VAC coil—ideal for industrial automation and control panels. Built for reliability, with pushbutton, LED indication, and high electrical life of 100,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

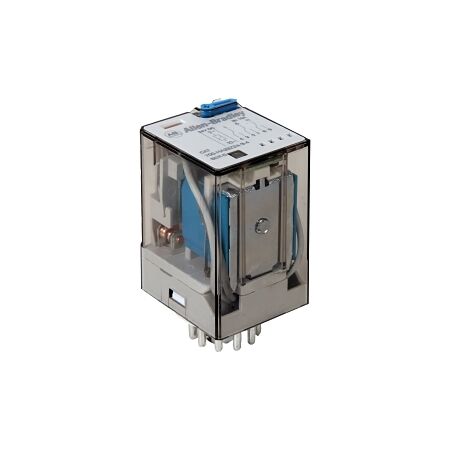

Product Name/Title: Allen-Bradley 700-HA Tube Base Relay 10A 2CO 240VAC Coil with Pushbutton + LED
Brand: NHP
SKU: 700HA32A234L
Alternatively Known As: Tube Base Relay, 10A Relay, 240VAC Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC-1: 2500 VA
- Rated Switching Power at AC-15 (230 V): 500 VA
- Breaking Capacity at DC-1 (30 V): 10 A
- Control Supply Voltage (AC 50/60 Hz): 240 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Degree of Protection: IP40
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36.5mm x 54.1mm x 32.8mm
- Weight: 0.5 kg
Key Features
- General purpose relay with LED indication.
- Plug-in connection for easy installation.
- High electrical life of 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HA Tube Base Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
