Tube Base Relay 10A 3PDT | 240VAC Coil | Push To Test & Pilotlight by NHP
Tube base relay with 10A nominal current and 3PDT configuration—ideal for industrial automation and control panels. Built for reliable switching, with push to test feature and LED indication for easy status monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

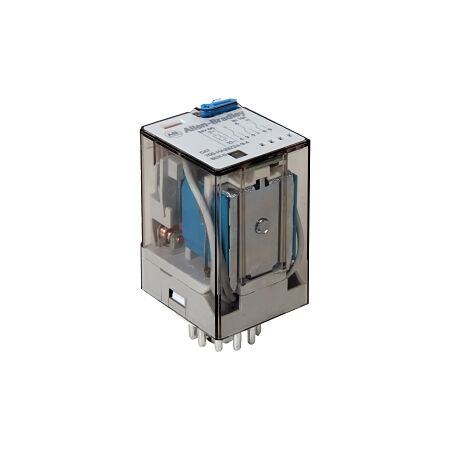

Product Name/Title: Allen-Bradley 700-HA Tube Base Relay 10A 3CO 3PDT 240VAC Coil with Push To Test and Pilotlight
Brand: NHP
SKU: 700HA33A234L
Alternatively Known As: Tube Base Relay, 3CO Relay, 10A Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC-1: 2500 VA
- Rated Switching Power at AC-15 (230 V): 500 VA
- Breaking Capacity at DC-1 (30 V): 10 A
- Control Supply Voltage (AC 50/60 Hz): 240 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Degree of Protection: IP40
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36.5mm x 54.1mm x 32.8mm
- Weight: 0.2 kg
Key Features
- 10A nominal current with 3 changeover contacts.
- LED indication for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HA Tube Base Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
