Tube Base Relay 10A 3PDT | 24VAC Coil | Push To Test & Pilotlight by NHP
Tube base relay with 10A nominal current and 3PDT configuration—ideal for industrial automation and control panels. Built for reliable switching, with push to test feature and LED indication for operational status.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

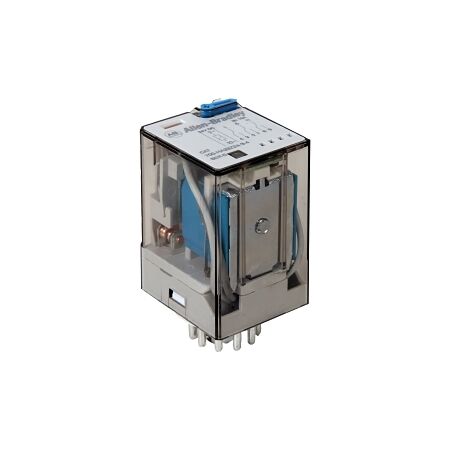

Product Name/Title: Allen-Bradley 700-HA Tube Base Relay 10A 3CO 3PDT 24VAC Coil with Push To Test and Pilotlight
Brand: NHP
SKU: 700HA33A2434
Alternatively Known As: General Purpose Relay, Tube Base Relay, 700-HA Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC-1: 2500 VA
- Rated Switching Power at AC-15 (230 V): 500 VA
- Breaking Capacity at DC-1 (30 V): 10 A
- Control Supply Voltage (50/60 Hz): 24 V
- Degree of Protection: IP40
- Material Contact: Silver nickel
- Mechanical Life: 20,000,000 cycles
- Max Shock Acceleration: 50 g
- Max Vibration Acceleration: 5 m/s²
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36.5mm x 54.1mm x 32.8mm
- Weight: 0.2 kg
Key Features
- 10A nominal current with 3 changeover contacts.
- LED indication for operational status.
- Plug-in connection for easy installation.
- Latching test button for manual testing.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for long electrical life with 100,000 service cycles.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HA Tube Base Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
