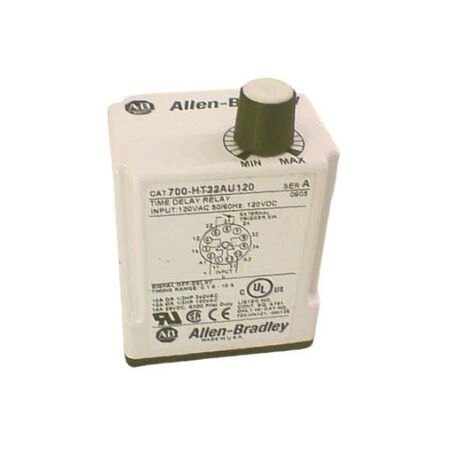

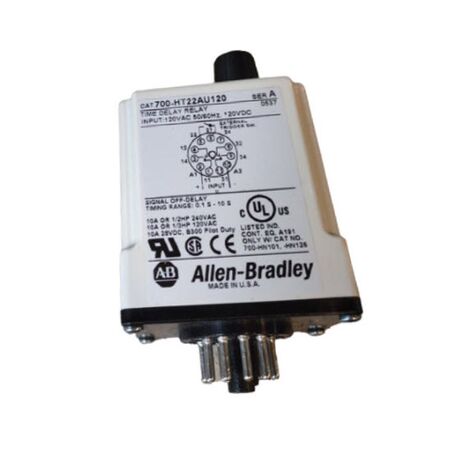

Tube Base Timing Relay | Off Delay Functionality | DPDT Contact Type | 0.1 to 10 Seconds Timing Range | by Allen-Bradley
The Tube Base Timing Relay from Allen-Bradley features off delay functionality and a DPDT contact type, making it ideal for industrial automation control systems. With a timing range of 0.1 to 10 seconds and compatibility with 120 VAC and 120 VDC, this relay ensures precise timing control for manufacturing processes and electrical circuits, enhancing energy efficiency and reducing unnecessary power usage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Timing Range: 0.1 to 10 seconds
- Contact Type: DPDT
- Operating Voltage: 120 VAC (50/60 Hz) and 120 VDC
- Relay Type: Tube Base Timing Relay
- Function: Off Delay Timer
- Dimensions (H x L x W): 70mm x 70mm x 35mm
- Weight: 0.2 kg
Key Features
- Off delay timer functionality
- DPDT (Double Pole Double Throw) contact configuration
- Wide timing range from 0.1 to 10 seconds
- Operates on 120 VAC at 50/60 Hz and 120 VDC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Delay off timing applications in electrical circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by precise timing control reducing unnecessary power usage
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HT22AU120 Tube Base Timing Relay is available now for immediate purchase, ideal for industrial and manufacturing timing control applications.
