Tundra 48 Inch Smart DC Ceiling Fan 3 Blade Black/Walnut Domus

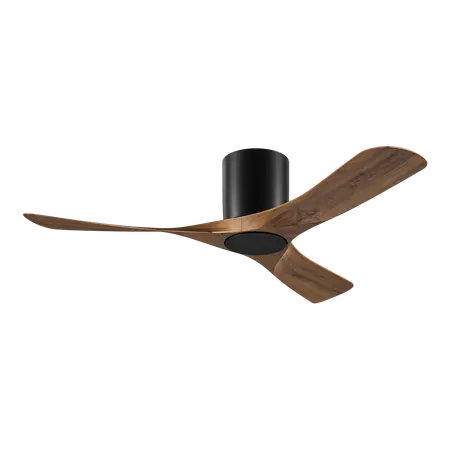

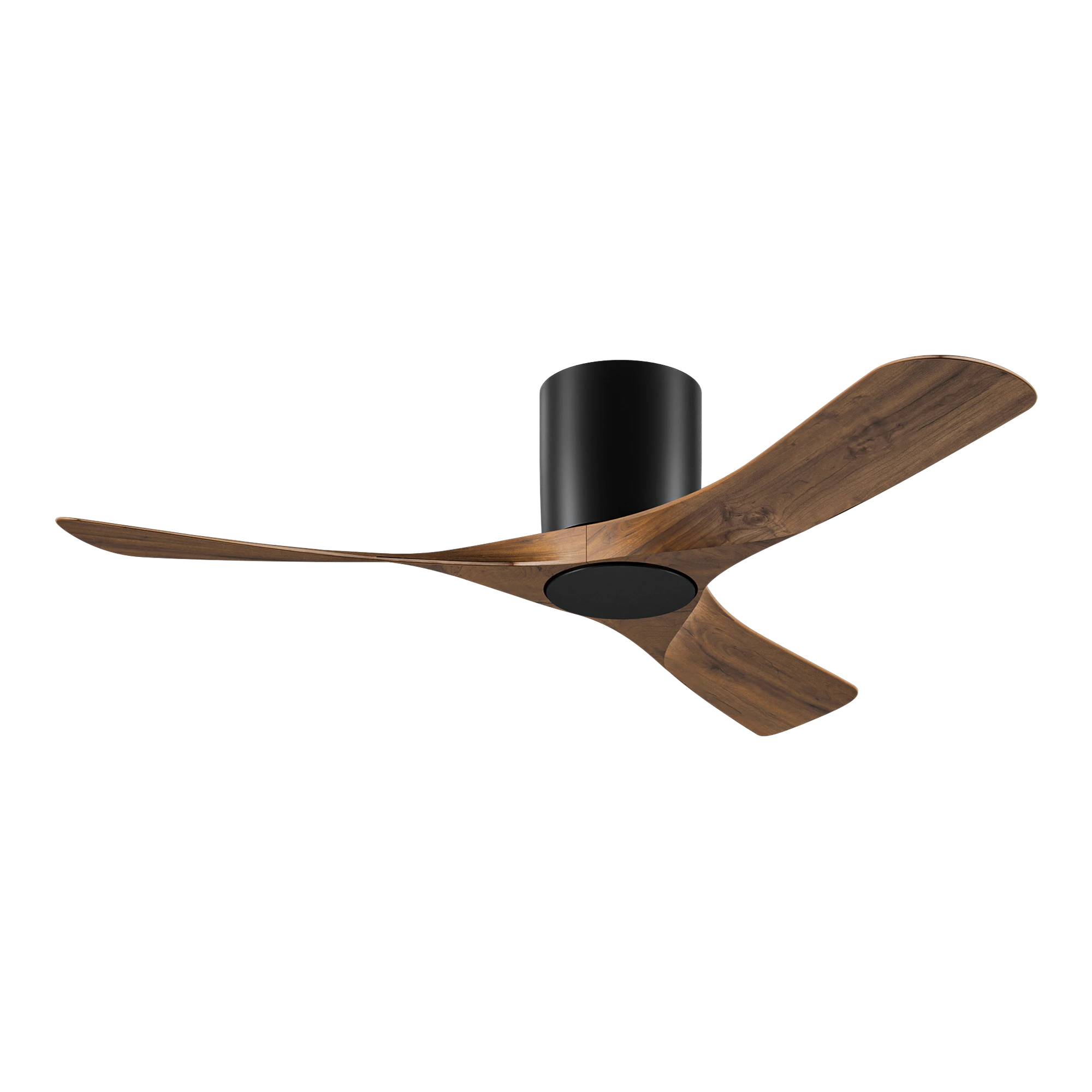

Domus Tundra 48 inch (1220mm) smart DC ceiling fan, 3 blade, close to ceiling, black/walnut finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tundra-48 Smart DC Fan, 48 Inch 3 Blade Ceiling Fan, Black/Walnut DC Ceiling Fan
Technical Specifications
- Model: TUNDRA-48
- Variant Item Number: 60198
- Input Voltage: 240V AC
- Motor Type: DC motor
- Motor Power: 35W
- Number of Blades: 3
- Blade Length: 48 inches / 1220mm
- Blade Pitch: 14 degrees
- Maximum Airflow: 12,912m³/h
- Airflow Speeds: 3,588 to 12,912m³/h across 6 speeds
- Construction: ABS polymer motor housing, canopy and blades
- Ingress Protection: IP20
- Remote Control: Included, 6-speed handset
- Winter/Summer Function: Yes
- Light Compatibility: Adaptable to optional dimmable LED light kit
- Tropical Rating: Yes
- Extension Rod: Available
- Installation Restriction: Do not install on a raked or sloped ceiling
- Dimensions (H x L x W): 217mm x 1220mm x 1220mm
- Weight: 5.2 kg
Key Features
- Black motor and canopy with walnut-finish blades
- Three-blade 48-inch design for residential interiors
- Energy-efficient 35W DC motor
- Six-speed remote control included
- Quiet operating performance
- Summer and winter reverse function
- Optional dimmable LED light kit available
- Optional light kit provides switchable 3000K, 4000K and 6500K colour temperatures
- Suitable for indoor areas and sheltered locations protected from wind and rain
Professional Installation Requirements
- Installation of the fan, power outlet and fixed wiring must be performed by a licensed electrician. Install the isolation switch, earth the fan and mounting bracket, secure the mounting plate to a suitable load-bearing structure, and install the blades at least 2.1m above floor level in accordance with the manufacturer's instructions and applicable wiring rules.
Applications
- Residential living rooms and bedrooms
- Apartments and other indoor residential spaces
- Modern interior design projects requiring a black and walnut finish
- Sheltered pergolas and roofed outdoor areas protected from wind and rain
- Year-round air circulation using summer and winter modes
Standards & Compliance
- AS/NZS 60335.2.80:2025 - applicable safety requirements for household and similar electric fans
- AS/NZS 60335.1 - general electrical appliance safety requirements referenced in the installation manual
- AS/NZS 3000:2018 - applicable requirements for fixed wiring and electrical installation
Environmental Benefits
- 35W DC motor can reduce operating energy consumption compared with higher-wattage conventional fan motors
- High airflow output supports efficient air circulation at relatively low motor power
- Summer/winter reverse function can assist passive air distribution and reduce reliance on heating or cooling systems
- Optional LED light kit uses a 22W LED luminaire with a stated 10,000-hour lifespan, reducing replacement frequency
- ABS polymer construction offers a durable, lightweight product with material recovery potential at end of life
Warranty Information
Fan: 3 years in-home warranty plus 3 years parts replacement. Receiver and remote control: 1 year in-home warranty plus 1 year parts replacement. Warranty applies to products installed by a licensed electrician and is available within Australia.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
