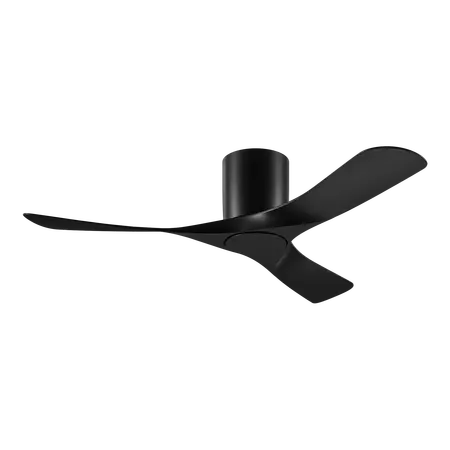

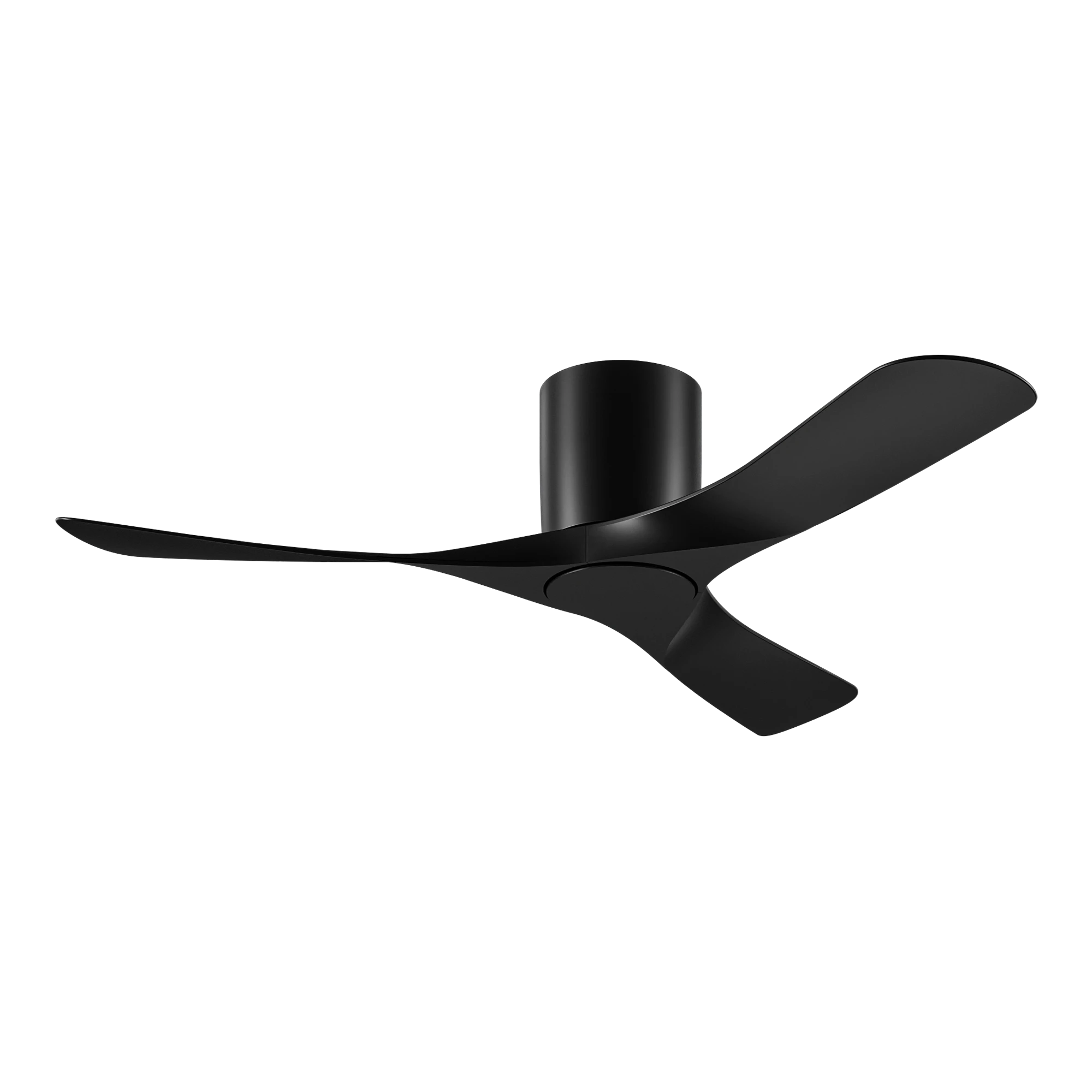

Tundra 48 Inch Smart DC Ceiling Fan 3 Blade CTC Black/Black Domus
Domus Tundra 48 inch (1220mm) smart DC ceiling fan, 3 blade, close to ceiling, black/black finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tundra-48 Smart DC Ceiling Fan, Domus 48 Inch Ceiling Fan, 3 Blade DC Ceiling Fan
Technical Specifications
- Input Voltage: 240V AC
- Motor Type: DC motor
- Motor Power: 35W
- Number of Blades: 3
- Blade Diameter: 1220mm (48 inch)
- Blade Pitch: 14°
- Maximum Airflow: 12,912m³/h
- Airflow Speeds: 3,588 to 12,912m³/h across six speeds
- Construction: ABS polymer motor housing, canopy and blades
- Finish: Black/Black
- IP Rating: IP20
- Remote Control: Included, six-speed
- Winter/Summer Function: Yes
- Light Compatibility: Optional dimmable LED light kit
- Tropical Rating: Yes
- Extension Rod: Available
- Dimensions (H x L x W): 217mm x 1220mm x 1220mm
- Weight: 5.2 kg
Key Features
- Three-blade 48 inch close-to-ceiling design
- Energy-efficient 35W DC motor
- Six-speed remote control included
- Summer/Winter reverse function for year-round air circulation
- Quiet operation for residential interiors
- Black motor housing, canopy and blades
- Optional 22W dimmable LED light kit with selectable 3000K, 4000K and 6500K colour temperatures
- Suitable for indoor use and sheltered outdoor areas protected from wind and rain
- One remote can be paired with up to four fans
Professional Installation Requirements
- Installation and fixed wiring must be completed by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Fit an isolation switch providing full disconnection of the fan and light. Do not install on a raked or sloped ceiling.
Applications
- Bedrooms and living areas
- Apartments and residential interiors
- Home offices and other indoor rooms
- Sheltered pergolas and protected outdoor areas
- Indoor coastal environments with appropriate protection from wind and rain
Standards & Compliance
- AS/NZS 3000: Electrical installations, for fixed wiring and isolation-switch requirements
- AS/NZS 60335.1: General safety requirements for household and similar electrical appliances, referenced in the installation manual
- AS/NZS 60335.2.80: Particular safety requirements for electric fans
Environmental Benefits
- 35W DC motor helps reduce operating energy demand compared with higher-wattage fan motors
- Optional LED light kit provides efficient solid-state lighting with a rated 10,000-hour luminaire lifespan
- Reversible airflow supports seasonal ventilation and may reduce reliance on other heating or cooling equipment
Warranty Information
Fan: 6 years total, comprising 3 years in-home warranty followed by 3 years parts replacement. Receiver and remote control: 2 years total, comprising 1 year in-home warranty followed by 1 year parts replacement. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
