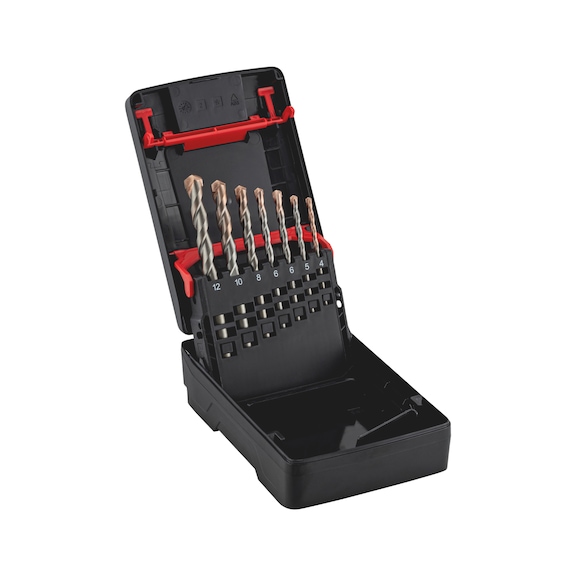

Tungsten Carbide Masonry Drill Bit Set | 7 PCS | Diamond-Sharpened Tip | Straight Shank Design | by Wurth
The Tungsten Carbide Masonry Drill Bit Set includes 7 pieces designed for dry drilling of high-fired bricks and tiles. With a diamond-sharpened tungsten-titanium tip and a practical straight shank, these bits ensure faster clamping and reduced slippage. Ideal for both professional and DIY masonry tasks, they are compatible with all rotary and impact drills, making them a versatile addition to your toolkit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tungsten Carbide Masonry Drill Bit Set | 7 PCS | Diamond-Sharpened Tip | Straight Shank Design | by Wurth
Brand: Wurth
SKU: 641000007
Alternatively Known As: Tungsten Carbide Masonry Drill Bit, Tile Drill Bit, Brick Drill Bit, Carbide Tip Drill Bit
Technical Specifications
- Number of pieces in set: 7 PCS
- Versatility rating: 3 of 4 points
- Service life rating: 2 of 4 points
- Drilling speed rating: 2 of 4 points
- Bore hole quality rating: 2 of 4 points
- Tool holding device: Cylinder shank
- Dimensions (H x L x W): 20mm x 150mm x 150mm
- Weight: 0.2 kg
Key Features
- Special tungsten carbide drill bit with straight shank
- Diamond-sharpened tungsten-titanium tip with special grinding
- Suitable for all rotary and impact drills including 10 mm clamping drill chucks
- Low-current, high-temperature soldering process at 1120°C
- Practical straight shank for faster clamping and no slippage
- Compatible with ORSY system cassette for compact and practical storage
- Recommended rotation speed: approx. 600-1500 rpm
- Use drill bits only in rotating mode with high contact pressure
- Cool-down time approximately 20 seconds per hole
Professional Installation Requirements
- No professional installation required. Suitable for use with standard rotary and impact drills by trained operators.
Applications
- Dry drilling of high-fired bricks and tiles
- Suitable for use with rotary and impact drills
- Ideal for masonry and ceramic drilling tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable tungsten carbide material extends tool life reducing waste
- Efficient drilling reduces energy consumption during use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Special Tungsten Carbide Drill Bit set is available now for immediate purchase. Ideal for professional and DIY masonry drilling applications.
