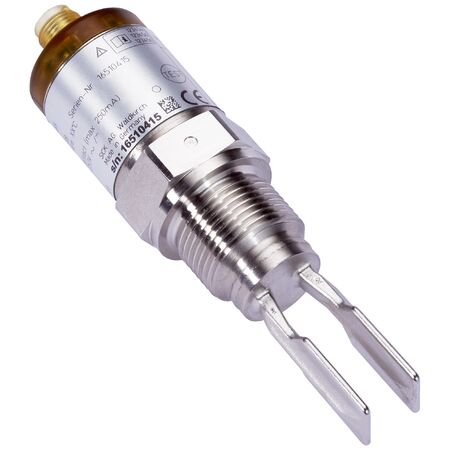

Tuning Fork Level Sensor | Reliable Fluid Detection | IP65 Rated | by SICK
The Tuning Fork Level Sensor is designed for precise fluid level detection in industrial applications, featuring a robust stainless steel construction and an IP65 rating for dust and water protection. With a wide process pressure range from -1 bar to 64 bar and an operating temperature of -40 °C to +100 °C, this sensor is perfect for monitoring various liquids, ensuring high accuracy and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tuning Fork Level Sensor | Reliable Fluid Detection | IP65 Rated | by SICK
Brand: SICK
SKU: 6044784
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, LFV200 Level Sensor, SICK Level Detector
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 115 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Supply voltage: 9.6 V DC to 35 V DC
- Power consumption: ≤10 mA
- Output signal: Transistor output PNP
- Output current: <250 mA
- Enclosure rating: IP65
- Connection type: Valve plug DIN 43650
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G ¾ A PN 64
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Dimensions (H x L x W): 150mm x 115mm x 30mm
- Weight: 0.3 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for fluids with densities from 0.7 g/cm³ to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP65 rated enclosure for protection against dust and water
- Valve plug DIN 43650 connection with transistor PNP output
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical and food industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤10 mA supports energy-efficient operation
- Reliable switching reduces process waste and prevents overflows
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XXSGBTPVL tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring and control applications.
